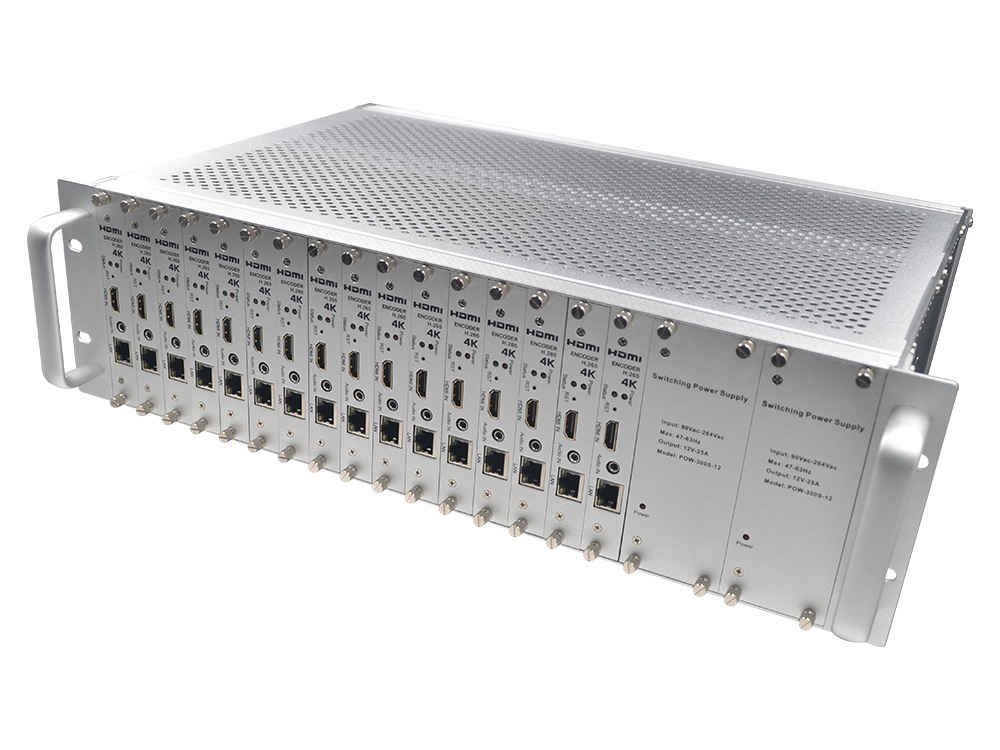

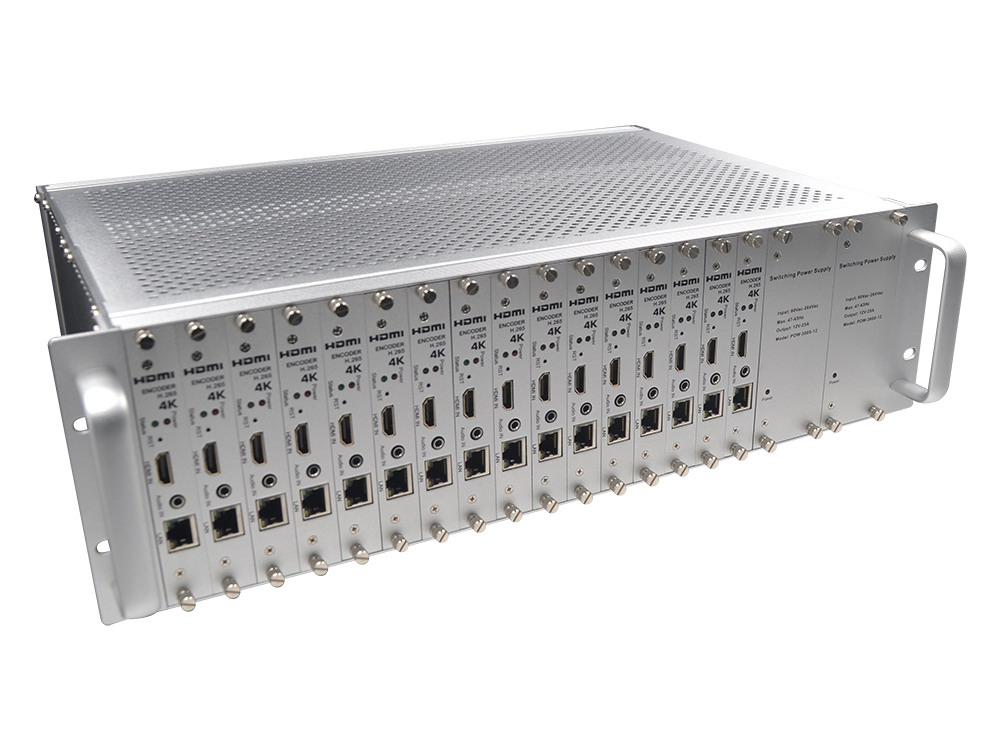

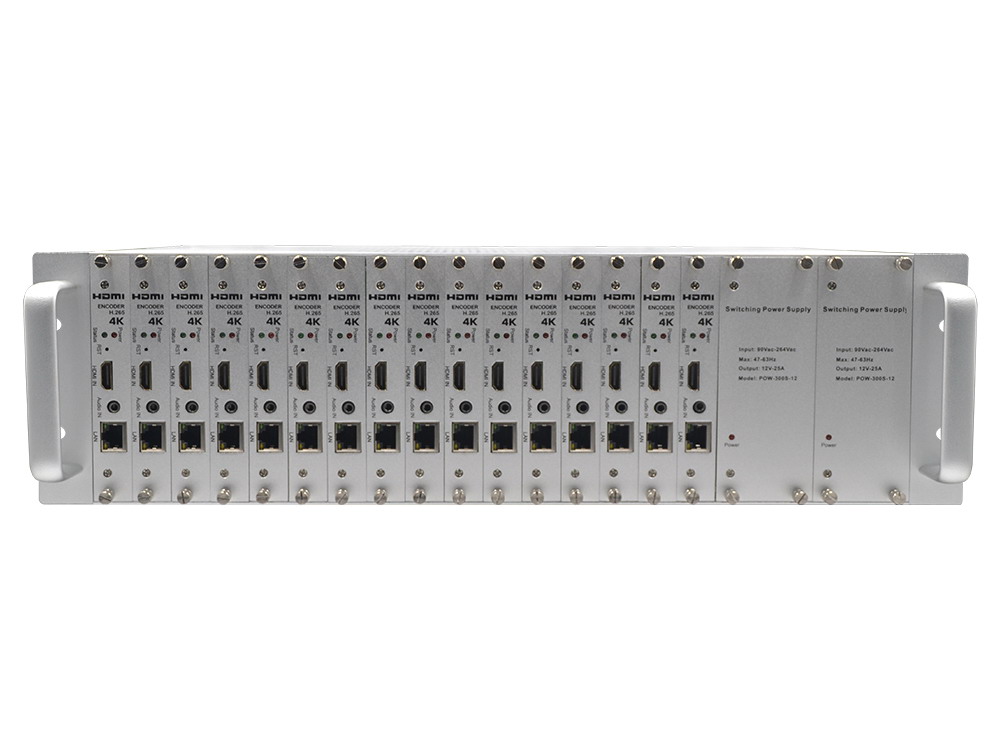

DATA SHEET: OUPREE OPR-1600P-4K 3U RACK-MOUNTED UHD H.265 IP STREAMING ENCODER SKYRS Pakistan Official Distribution Portfolio
The Oupree OPR-1600P-4K is an industrial, high-density 3U rackmount hardware video encoder designed for mass-scale, ultra-low-latency Ultra High Definition (UHD) streaming. Powered by an embedded HiLinux OS and high-performance processing chipsets, it accommodates modular blade cards to compress up to 16 independent channels of 4K video using advanced H.265 (HEVC) or H.264 compression. This enterprise platform is engineered for telecom headends, centralized IPTV distribution, and national broadcast hubs requiring continuous 24/7 reliability across Pakistan.
PRODUCT MODULE & CHASSIS VARIANTS BY SKYRS PAKISTAN
SKYRS provides the OPR-1600P-4K system in scalable modular configurations, allowing facilities in Karachi, Lahore, and Islamabad to populate the 3U mainframe based on active project demands and future expansion budgets.
Variant 1: OPR-1600P-4K Base Chassis (Empty Frame + Dual Power)
Form Factor: 19-inch 3U industrial rackmount enclosure with an integrated passive backplane.
Power Architecture: Equipped with hot-swappable dual redundant power supplies (AC 110-220V) to prevent downtime.
Capacity: Contains 16 slots ready to accept independent 4K single-channel hot-swappable encoder boards.
Variant 2: OPR-1600P-4K Fully Loaded (16-Channel 4K Setup)
Form Factor: Complete 3U assembly packed with 16 modular 4K HDMI encoder cards.
Hardware Array: 16× Discrete HDMI 1.4/2.0 inputs and 16× independent Gigabit RJ45 Ethernet ports working simultaneously.
Deployment: Designed for central television master control rooms, military data fusion hubs, and tier-1 telecom IPTV streaming arrays.
Variant 3: OPR-1600P-4K Custom Scaled (Partial Blade Configuration)
Form Factor: 3U chassis partially populated with encoder modules (e.g., 4, 8, or 12 channels).
Scalability: Enables regional operators to start with a smaller footprint and scale up simply by sliding in extra 4K blade modules without powering down the frame.
Deployment: Ideal for growing university networks, large corporate multi-room campuses, and regional cable headends.
TECHNICAL SPECIFICATIONS
Video Processing & Processing Blades
Compression Standards: H.265 / HEVC (Main Profile, 10-bit color depth capability) and H.264 / AVC (High / Main / Baseline Profile).
Input Interface per Card: 1× HDMI (supporting HDCP).
Supported Input Resolutions: 3840×2160@30fps (UHD 4K), 1080P@60fps, 1080i, 720P, and lower definition standard video layouts.
Frame Rate Output Range: Adjustable from 5fps to 30fps for 4K streams; up to 60fps for Full HD streams.
Video Bitrate Density: Variable Bitrate (VBR) or Constant Bitrate (CBR) from 16 Kbps to 32 Mbps per module.
Audio Management
Input Capture: HDMI Embedded Digital Stereo Audio or External 3.5mm Analog Audio Line-In per blade card.
Compression Protocols: AAC, AAC+, AAC++, MP3, MP2, and G.711.
Sampling Rate: 44.1 kHz / 48.0 kHz.
Audio Output Bitrate: Range from 48 Kbps to 320 Kbps.
Network Protocol Matrix
Streaming Engine Protocols: SRT, HTTP, RTSP, RTMP, RTMPS, HLS, UDP, RTP, ONVIF, Unicast, and Multicast.
Multi-Stream Architecture: Each independent blade can output up to 4 simultaneous distinct output IP streams (up to 64 streams across a fully populated chassis), permitting varied bitrates for local backup and global distribution.
Physical Interfaces: 16× 100M/1000M Base-T Self-Adaptive Gigabit RJ45 ports (one dedicated port per individual encoder blade card).
System Management & Infrastructure Stability
Core Operating System: Embedded HiLinux platform engineered for resilient 24/7 industrial runtime applications.
Configuration Management: Accessible via an independent web-based GUI for each blade card using distinct local IP routing addresses.
On-Screen Display (OSD): Text insertions, timestamping, dynamic scroll titles, and custom BMP/PNG logo overlays can be customized per channel feed.
Thermal Regulation: Integrated high-volume industrial cooling fans mounted in the 3U chassis frame for optimal heat dissipation.
SKYRS PAKISTAN REGIONAL REGISTRATION & DELIVERY
SKYRS backs the high-density OPR-1600P-4K platform with extensive on-site deployment consulting, direct technical support, and official warranties across Pakistan’s key urban centers:
Southern Province (Karachi): Customized for large-scale multi-channel maritime surveillance arrays, digital media group data hubs, and international telecommunication gateways.
Central Province (Lahore, Faisalabad, Multan): Optimized for major universities hosting multi-department distance learning arrays and regional cable distribution headends transitioning to pure IPTV networks.
Northern Province (Islamabad, Rawalpindi, Peshawar): Scaled for high-security secure government operations rooms, nationwide public sector broadcasting networks, and institutional data center integrations.
