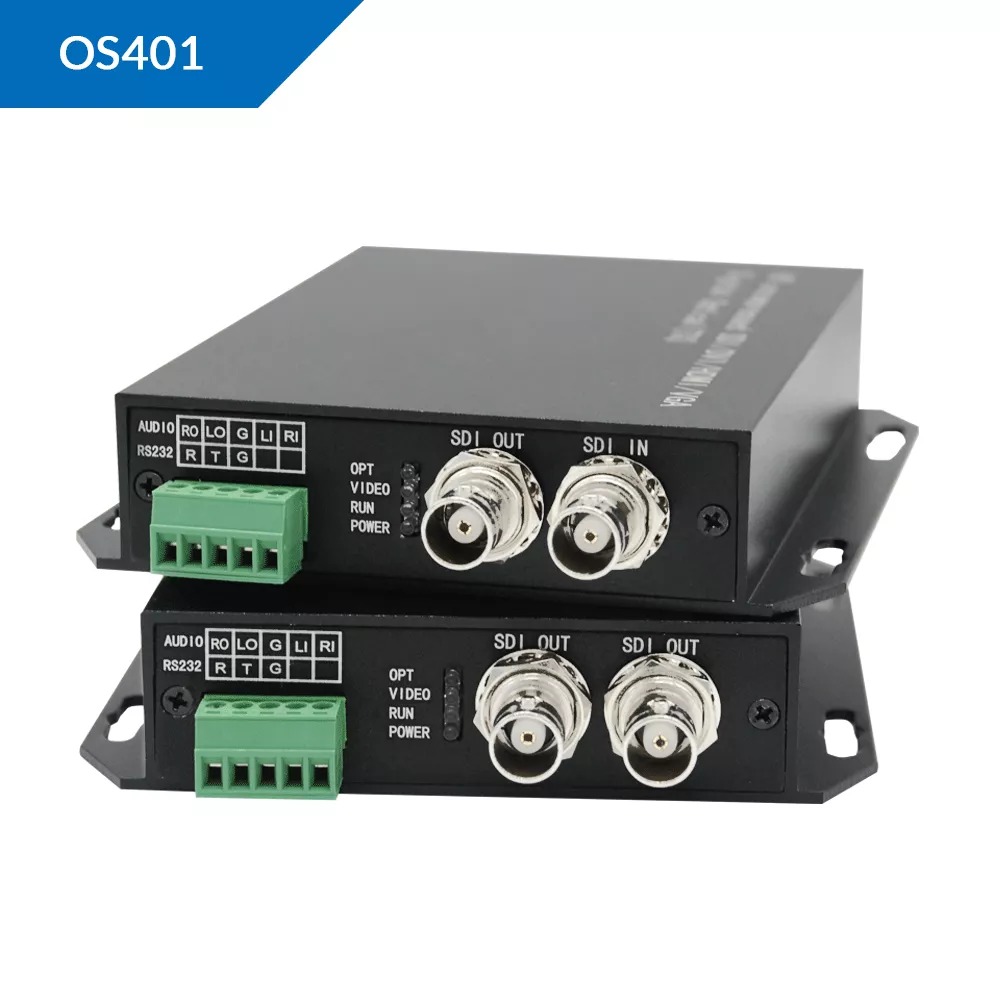

The OS401 series is a commercial-grade, high-reliability signal processing and distribution system engineered for continuous operation in mission-critical environments. Built to bridge the gap between complex network backbones and remote display endpoints, the OS401 ensures lossless signal integrity, ultra-low latency, and robust environmental resilience across modern enterprise frameworks.
PRODUCT OVERVIEW
The OS401 functions as an intelligent media conversion and distribution system, designed to capture, secure, and extend high-bandwidth media streams alongside control data. It is widely deployed across control centers, corporate boardrooms, public surveillance networks, and digital signage matrices where reliable signal continuity is non-negotiable.
PRODUCT VARIANTS FOR PAKISTAN
To address the diverse topological demands of IT and AV infrastructures across Pakistan, the OS401 is engineered in three distinct operational models:
OS401-C (Copper Ethernet Variant) Optimized for intra-building deployments, utilizing shielded Category 6/6A copper cabling to distribute high-definition signals up to 100 meters with enhanced surge protection.
OS401-SM (Single-Mode Fiber Variant) Engineered for long-haul infrastructure and campus backbones, utilizing Simplex Single-Mode optical fiber to transmit uncompressed signals up to 20 Kilometers with zero EMI interference.
OS401-MM (Multi-Mode Fiber Variant) Tailored for high-density, localized data centers and enterprise network closets, utilizing Multi-Mode fiber links for high-speed transmission up to 500 meters.
TECHNICAL SPECIFICATIONS
Signal Compatibility: Adaptive high-definition video processing (up to 4K / 1080p intelligent scaling)
Transmission Media: Variant-dependent (UTP/STP Cat6, Single-Mode Fiber, or Multi-Mode Fiber)
Control Pass-Through: Bi-directional serial data and infrared control extension
Latency: Ultra-low, sub-millisecond hardware-level processing
Housing: Industrial-grade, EMI-shielded metal enclosure with integrated thermal dissipation slots
Power Supply: Dual-redundant power input capability for high-availability setups
Security: Built-in isolation circuits to prevent ground loops and voltage spikes
DEPLOYMENT AND INSTALLATION
Deploying the OS401 involves a structured hardware-pairing sequence across your network infrastructure:
Central Core Setup: Mount the OS401 Transmitter (TX) unit within the central server rack or close to the main media matrix. Connect the input source and any necessary control interfaces.
Endpoint Setup: Secure the OS401 Receiver (RX) unit near the destination display terminal, projector, or console matrix. Connect the corresponding peripheral outputs.
Backbone Link: Interconnect the TX and RX units using the designated media path (structural copper run or dedicated fiber patch panels) corresponding to your specific OS401 variant.
System Activation: Power on the display endpoints followed by the OS401 modules. Internal diagnostic LEDs will cycle to confirm a stable link synchronization and active data flow.
CONFIGURATION
The OS401 incorporates a zero-touch, hardware-driven configuration architecture:
Self-Optimizing Link Negotiation: The integrated processor automatically handles handshake protocols and signal equalization based on the detected physical cable distance and quality.
Intelligent Display Mapping: Automatically caches and synchronizes peripheral EDID profiles, eliminating the need for manual resolution tuning or software driver installation.
Dynamic Status Monitoring: Integrated front-panel LED indicators provide real-time hardware status, link stability, and data activity telemetry for rapid on-site auditing.
AVAILABILITY NOTICE
Critical Procurement Note: The deployment, physical installation, advanced system integration, and all official hardware variants of the OS401 series within Pakistan are available exclusively through SKYRS. Certified regional warranties, authentic spare components, and dedicated field engineering support are strictly confined to turnkey solutions provisioned directly by SKYRS.
