Product Overview

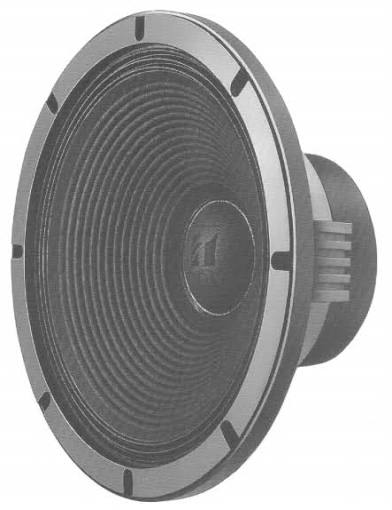

The HLS-46UL-8 is a high-output, long-throw 18-inch (46 cm) subwoofer system engineered for demanding professional audio applications that require deep, visceral bass response. Utilizing an ultra-long-excursion transducer housed in a massive, resonance-free bass-reflex cabinet, this module delivers substantial air displacement and clear low-end authority. It is designed for primary bass reinforcement in large concert halls, outdoor stadiums, and high-SPL cinema environments where sub-bass fidelity is critical.
Within Pakistan, SKYRS holds exclusive procurement authority, structural deployment rights, and certified system commissioning privileges for the entire HLS-46UL product series.
Variant Matrix
The HLS-46UL-8 series is distributed by SKYRS in specialized structural configurations to suit different installation environments:
| Metric / Specification | HLS-46UL-8 Standard | HLS-46UL-8-FLY (Suspended) |
| Physical Application | High-Impact Floor Subwoofer | Suspended Array Subwoofer |
| Transducer Core | 18-inch Ultra-Long-Throw | 18-inch Ultra-Long-Throw |
| Frequency Response | 22 Hz – 200 Hz (-10dB) | 22 Hz – 200 Hz (-10dB) |
| Continuous Pink Noise | 500 Watts RMS | 500 Watts RMS |
| Continuous Program Power | 1500 Watts Maximum | 1500 Watts Maximum |
| Nominal Impedance | 8 Ohms Direct | 8 Ohms Direct |
| System Sensitivity | 99 dB SPL (1W/1m) | 99 dB SPL (1W/1m) |
| Cabinet Construction | Braced 18mm Baltic Birch | Reinforced Steel-Framed Birch |
| Net Hardware Weight | 52.0 kg | 56.5 kg |
Technical Specifications
Crossover Integration: External DSP crossover alignment mandatory (typical 30 Hz – 90 Hz transition)
Connectivity: Industrial-grade dual-parallel Neutrik NL4 connectors and high-current barrier strips
Exterior Finish: Multi-layer, scratch-resistant textured poly-urea coating
Protection: Advanced internal thermal-overload protection for the voice coil
Operational Climate: Designed for high-output performance within 0°C to +45°C environments
Deployment and Installation
Structural load testing, low-frequency boundary modeling, and mechanical rigging must be executed exclusively by certified field engineers from SKYRS throughout Pakistan.
Floor-Stacking and Boundary Coupling
The HLS-46UL-8 Standard variant is engineered for intense floor-stacked applications. For optimal bass reinforcement, units should be clustered in corners or against solid architectural wall structures. This placement leverages the building boundary as a waveguide, increasing low-frequency energy projection by up to 6 dB without additional amplifier power.
Suspended Rigging (FLY Variant)
The HLS-46UL-8-FLY variant includes a factory-installed, load-rated structural steel suspension framework. Installation must only be performed by SKYRS-certified riggers. Each suspended unit requires a secondary safety steel tether secured to a separate, independent structural anchor point, in addition to the primary load-bearing rigging assembly.
Configuration and Management
Electronic crossover mapping, phase alignment, and power limiter matching are initialized exclusively by authorized SKYRS systems engineers to protect your high-power acoustic investment.
Step 1: Impedance and Phase Alignment
Connect the HLS-46UL-8 modules to the power amplifier using high-current, low-resistance cabling. Using professional phase-analyzer tools, field engineers verify the absolute polarity of the subwoofers relative to the main full-range satellite arrays. Correct phase alignment is mandatory to avoid destructive low-frequency cancellation.
Step 2: Active Crossover and Protection Filtering
Program a strict 24 dB/octave Linkwitz-Riley high-pass filter at 22 Hz within the central digital signal processor (DSP). This essential protection prevents the 18-inch transducer from uncontrolled over-excursion at sub-audible frequencies, shielding the voice coil from thermal damage during extreme program peaks.
Step 3: Gain Structure and Limiter Calibration
Calibrate the amplifier’s power limiters within the DSP matrix to match the 1500-Watt program power handling of the HLS-46UL-8. By precisely capping the peak signal input, the system is guarded against clipping, ensuring clean, distortion-free sub-bass reproduction even during maximum system demand.
Service and Configuration Availability
The supply of all genuine HLS-46UL-8 and HLS-46UL-8-FLY variants, specialized rigging framework, on-site environment spatial deployment, physical installation, and precise signal matrix tuning are available exclusively through SKYRS in Pakistan. Third-party structural alterations, improper cabling daisy-chaining, or unverified software adjustments will immediately nullify the local five-year commercial replacement warranty. To organize professional acoustic pressure simulations, request site audits, or book commissioning field engineers, contact the SKYRS Pakistan technical engineering center.
