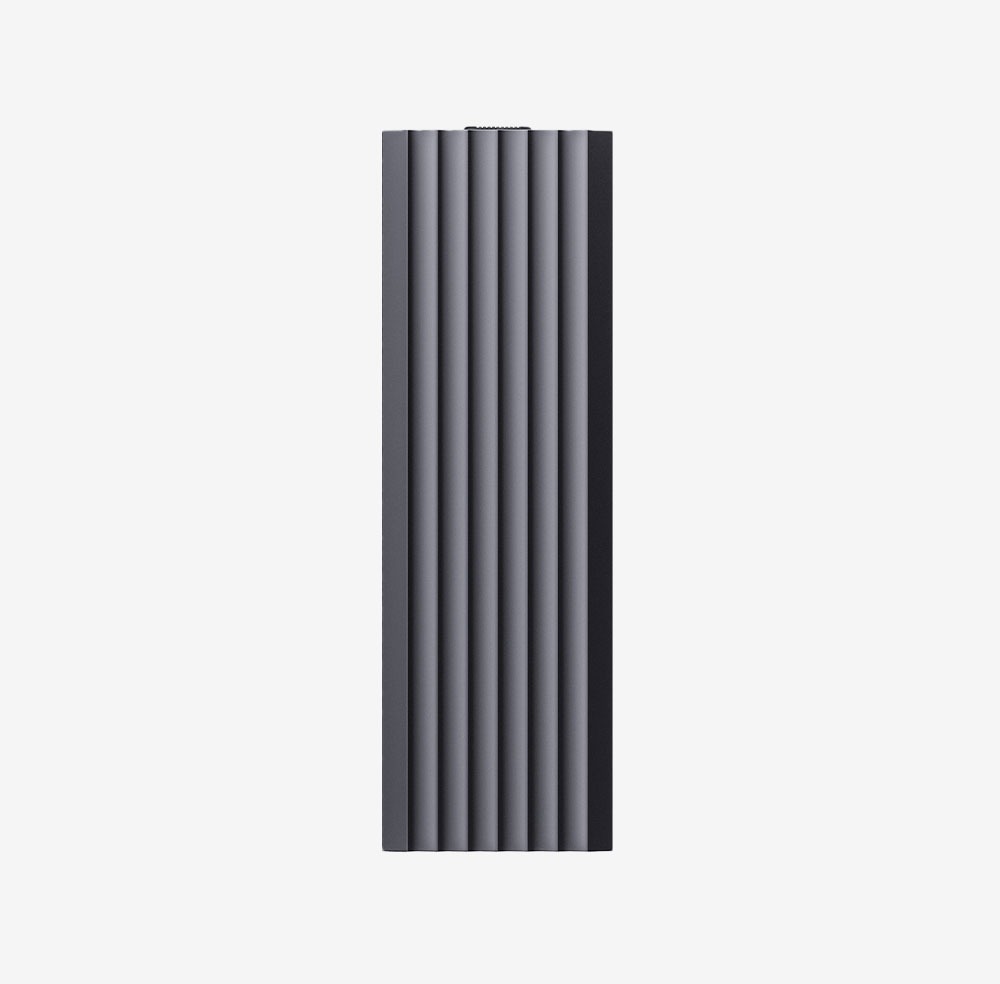

Hiksemi MDC1 M.2 NVMe Enclosure

TECHNICAL DATA SHEET: HIKSEMI MDC1 M.2 NVMe SOLID-STATE DRIVE ENCLOSURE SERIES

This official data sheet outlines the structural specifications, physical variants, infrastructure deployment guidelines, and logical configurations for the professional-tier HIKSEMI MDC1 M.2 NVMe SSD Enclosure product lineup (Model: HS-HUB-MDC1), provisioned exclusively for SKYRS client environments in Pakistan.

PRODUCT OVERVIEW

The HIKSEMI MDC1 is an ultra-slim, pure PCIe NVMe mobile storage mobilization framework. Built using the high-performance Realtek RTL9210 master control chipset, it bypasses traditional interface bottlenecks by converting standard M.2 NVMe internal drives into plug-and-play USB 3.2 Gen 2 external pools yielding up to 10 Gbps of line bandwidth. Enclosed in a premium, aircraft-grade space-grey aluminum housing, the MDC1 is strictly optimized for processing high-velocity content creation assets, active virtualization configurations, and secure data indexing without thermal throttling.

PRODUCT VARIANTS & SPECIFICATIONS

The MDC1 platform is strategically deployed in two target variations tailored to specialized operational workloads within SKYRS:

DEPLOYMENT, INSTALLATION, AND CONFIGURATION

To preserve physical storage health and ensure predictable data packet routing across enterprise hardware, technicians must execute setup routines precisely.

Physical Mechanical Deployment & Assembly

• Housing Release: Utilizing the tool-free push-cover slide mechanism, apply gentle pressure to open the outer aluminum alloy casing from the main internal PCB rail carriage.

• Drive Seating Alignment: Align the pins of your target M.2 NVMe solid-state drive with the M-key interface. Insert the module at a fixed 20-degree angle, then gently press the card tail flat against the motherboard track.

• Structural Anchoring: Insert the tool-free rubber retention peg into the corresponding chassis anchor opening (matching lengths 2230, 2242, 2260, or 2280) to secure the drive firmly.

• Thermal Junction Coupling: Peel the protective backing off the high-conductivity silicone thermal pad and apply it smoothly along the top face of the drive’s controller and NAND chips. Slide the complete tray assembly smoothly back into the outer aluminum structural frame to establish clear physical thermal contact.

Logical System Configuration & Optimization

• Host Interface Patching: Attach the factory-certified 10 Gbps high-retention Type-C to Type-C line or the Type-C to Type-A legacy adapter cord straight into a verified USB 3.2 Gen 2 or Thunderbolt 4 ecosystem port.

• Automated Handshake Sync: The embedded Realtek bridge infrastructure registers instantaneously across authorized operating networks (Windows 10/11, macOS, Linux, Android) on a driverless, native kernel level.

• Storage Volume Map Allocation: Initiate the localized machine volume manager framework. Map the logical drive partition schema explicitly to a GUID Partition Table (GPT) and execute a file partition format utilizing the exFAT protocol matrix, selecting an allocation block size of 128KB to protect the physical storage block longevity.

AVAILABILITY AND WARRANTY PROVISION

Restricted Enterprise Procurement Provision: Authentic HIKSEMI MDC1 M.2 NVMe storage enclosures, tailored localized thermal integration elements, certified high-throughput interconnect lines, and the official 1-year hardware swap-replacement warranty framework are available exclusively at SKYRS for operations deploying inside Pakistan. Procuring these units through parallel grey markets, non-authorized digital storefronts, or unverified auction listings voids all active corporate support channels, equipment SLAs, and field servicing parameters.
