TECHNICAL DATA SHEET: HIKSEMI MD202 DUAL-PROTOCOL HARD DISK ENCLOSURE SERIES
This technical data sheet establishes the structural specifications, variant availability, physical integration workflows, and logical deployment protocols for the HIKSEMI MD202 Dual-Protocol M.2 Hard Disk Enclosure family (Model: HS-HUB-MD202) custom-provisioned for SKYRS computing networks in Pakistan.
PRODUCT OVERVIEW

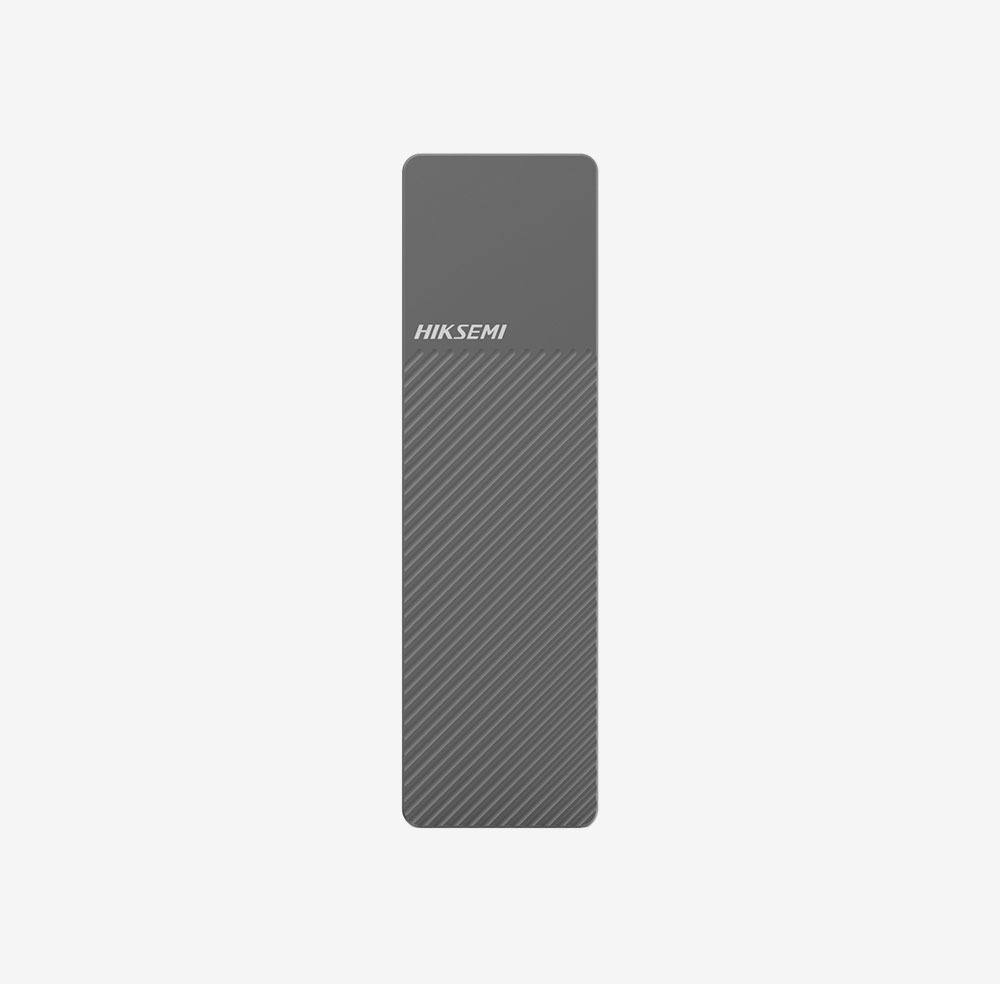

The HIKSEMI MD202 is an ultra-portable, dual-protocol storage mobilization enclosure engineered to turn high-performance internal M.2 hard disks/SSDs into high-velocity external storage systems. Driven by the advanced Realtek RTL9210B master control processor, the MD202 eliminates the requirement for multiple enclosures by natively translating both PCIe NVMe and legacy M.2 SATA logic pathways over a single pipeline. Enclosed in a sleek, full metal thermal-efficient aluminum alloy frame, the device delivers robust shock defense, rapid asset archiving, and secure system staging.
PRODUCT VARIANTS & SPECIFICATIONS
The MD202 architecture is systematically allocated across two specific deployment profiles to serve varied technical field tasks within SKYRS:
| Technical Spec Vector |
MD202 Core Mobility Variant (HS-HUB-MD202-STD) |
MD202 Heavy Duty Shielded Variant (HS-HUB-MD202-HD) |
| Primary Workstation Use |
General data portability, field diagnostics |
Continuous server backup, forensic asset mapping |
| Logic Processing Engine |
Realtek RTL9210B Dual-Protocol Controller |
Realtek RTL9210B (Industrial Burn-in Certified) |
| Storage Bus Interface |
M.2 NVMe (PCIe) & M.2 SATA Dual Protocol |
M.2 NVMe (PCIe) & M.2 SATA Dual Protocol |
| Hard Disk Form Factors |
M.2 2242, 2260, 2280 |
M.2 2242, 2260, 2280 |
| Output Port Interconnect |
USB 3.2 Gen 2 Type-C Interface |
Reinforced, High-Retention USB 3.2 Gen 2 Type-C |
| Max Line Transfer Rate |
Up to 10 Gbps (Approx. $1050\text{ MB/s}$ real-world) |
Up to 10 Gbps (With enhanced EMI suppression) |
| Housing Architecture |
Slim Anodized Aluminum Alloy (Grey) |
CNC-Reinforced Anodized Aluminum Alloy (Grey) |
| Physical Dimensions |
$106 \times 31 \times 10\text{ mm}$ |
$106 \times 31 \times 10.5\text{ mm}$ |
| Advanced Logic Kits |
UASP Acceleration, TRIM Command Sync |
UASP Acceleration, TRIM Command, Hardware Eco-Sleep |
| Operating Power State |
10-Minute Smart Idle Dormancy Automation |
10-Minute Smart Idle Dormancy Automation |
DEPLOYMENT, INSTALLATION, AND CONFIGURATION
Adherence to physical installation steps ensures continuous heat transfer and mitigates data packet loss during high-volume enterprise backups.
Physical Mechanical Deployment and Assembly
-
Tool-Free Assembly: Apply gentle thumb pressure to slide the outer aluminum alloy top plate away from the inner PCB carriage track.
-
Hard Disk Keying: Align the notches of the target M.2 NVMe or SATA hard disk module with the multi-protocol M-Key interface. Insert the board firmly at a 20-degree incline, then rotate down flat.
-
Alignment Anchorage: Fasten the tail end of the drive module down using the tool-free rubber retention lock pin, matching the exact size layout (2242, 2260, or 2280).
-
Thermal Optimization Assembly: Peel away the clear film from the high-performance silicone thermal pad and press it smoothly along the top surface of the drive controller chips. Slide the internal carriage back into the main metal shell, ensuring the pad firmly seals against the aluminum frame to promote immediate heat dissipation.
Logical Configuration and System Optimization
-
Host Port Interface: Connect the enclosure directly to a native USB 3.2 Gen 2 or Thunderbolt 4 Type-C port on the workstation terminal utilizing the factory-certified 10 Gbps high-retention line cord.
-
Zero-Driver Handshake: The Realtek RTL9210B processor initiates an automated driverless handshake with the host operating architecture (Windows 10/11, macOS, Linux, Android) at the native system kernel level.
-
Allocation Formatting Matrix: Open your native disk partition utility framework. Initialize the raw space using a GUID Partition Table (GPT) layout. Format the file block structure using the exFAT filing framework, mapping the allocation unit block size specifically to 128KB to lengthen hard disk block integrity.
AVAILABILITY AND WARRANTY EXCLUSIVITY
Exclusive Infrastructure Provision: Genuine HIKSEMI MD202 dual-protocol hard disk enclosures, certified high-throughput interconnection cables, local technical field adjustments, and the official 1-year hardware swap-replacement warranty service level agreement (SLA) are available exclusively at SKYRS for operations deployed within Pakistan. Sourcing these storage assets through alternative local retail channels or unauthorized online merchants completely terminates your corporate technical support network, diagnostic pipelines, and replacement coverage.
