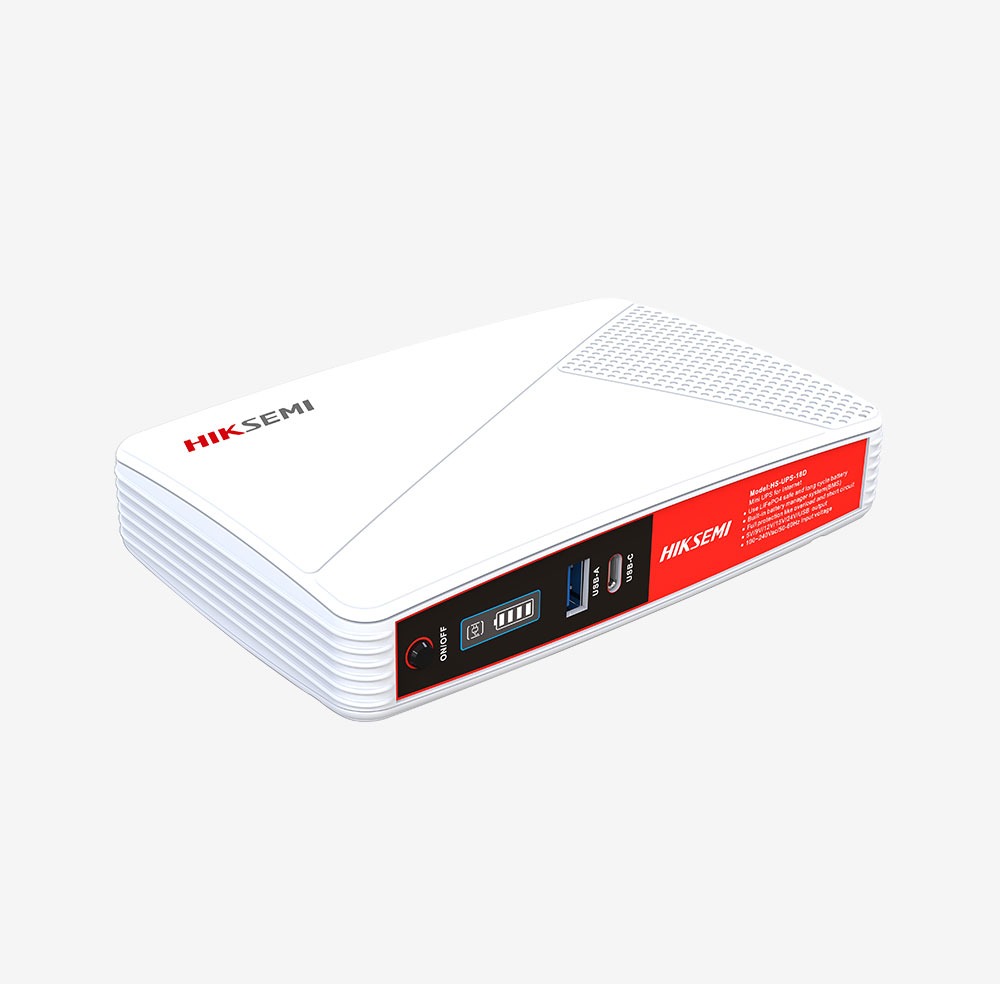

DATA SHEET: HIKSEMI 18W DC UPS SERIES
The HIKSEMI 18W DC Uninterruptible Power Supply (UPS) Series is engineered specifically to ensure continuous operational uptime for low-voltage, critical infrastructure devices during localized power drops and grid instability. Optimized for micro-networking terminals, CCTV security systems, smart biometric scanners, and smart home IoT platforms, this series bypasses the inefficiencies of traditional AC-to-DC inversion. By supplying constant, direct-current energy from high-stability cell configurations, the HIKSEMI 18W DC UPS prevents equipment hard-reboots, data packet losses, and security monitoring blackouts.
PRODUCT SPECIFICATIONS & VARIANTS
The reference table below identifies the distinct electrical profiles, battery chemistries, and output port arrays across all certified 18W DC UPS variants distributed for SKYRS in Pakistan:
| Feature / Specification |
HIKSEMI HS-UPS-18D (LiFePO4 Variant) |
HIKSEMI DS-UPS18D-Z (High-Density Lithium Variant) |
| Battery Cell Chemistry |
Lithium Iron Phosphate (LiFePO4) |
Premium Lithium-Ion |
| Total Stored Energy |
10,000 mAh (5,000 mAh × 2 Cells) |
8,000 mAh (2,000 mAh × 4 Cells) |
| Input Voltage Range |
100–240 Vac / 50–60 Hz Self-Adaptive |
100–240 Vac / 50–60 Hz Self-Adaptive |
| Max Output Rating |
18W Total Power Ceiling |
18W Total Power Ceiling |
| USB Interface Output |
5 Vdc ⎓ 2.0A |
5 Vdc ⎓ 2.0A |
| DC Port 1 Output |
5 Vdc ⎓ 2.0A |
5 Vdc ⎓ 2.0A |
| DC Port 2 Output |
9 Vdc ⎓ 1.0A |
9 Vdc ⎓ 1.0A |
| DC Port 3 Output |
12 Vdc ⎓ 1.0A |
12 Vdc ⎓ 1.0A |
| PoE (Power over Ethernet) |
Selectable 15 Vdc / 24 Vdc via Toggle |
Selectable 15 Vdc / 24 Vdc via Toggle |
| Cell Lifespan Matrix |
High-Cycle Long Life Topology |
Standard High-Density Topology |
| Typical Recharge Time |
3–4 Hours to 90% |
2–3 Hours to 90% |
| Chassis Dimensions |
166 mm × 105 mm × 33 mm |
160 mm × 105 mm × 28 mm |
KEY PERFORMANCE FEATURES
-
Multi-Voltage Synchronous Matrix: Simultaneously yields discrete voltages across USB, 5V/9V/12V DC ports, and passive PoE lines, enabling a single UPS unit to drive an optical fiber modem (ONT), a multi-band Wi-Fi router, and a standalone security camera concurrently.
-
Passive PoE Line Injector: Features an integrated Power over Ethernet bridge that can be toggled via a mechanical switch between 15V and 24V topologies, providing power straight down standard RJ45 data cables to remote IP nodes or wireless bridges.
-
Zero-Transfer Millisecond Switching: Built-in smart control system senses AC mains drops instantly, allowing the device to draw directly from internal DC reserves with zero millisecond transfer delay ($T = 0 \text{ ms}$), maintaining continuous operational uptimes.
-
Advanced Multi-Fault Engine: Managed by an internal central processor that guards against battery over-charging, severe over-discharging, output short-circuits, and high ambient thermal loads.
DEPLOYMENT, INSTALLATION, AND CONFIGURATION
To maximize runtime efficiency and system stability within local IT networks, engineering teams must observe the following configuration steps:
Physical Installation and Deployment
-
Environment and Mounting: Position the UPS in a well-ventilated network cabinet or wall shelf. Maintain proper distance from high-heat components. Ensure operating environments remain within 0°C to 40°C boundaries.
-
Initial AC Conditioning: Plug the included AC power cord into a stable grid socket. Confirm that the status LED shifts to solid green, signaling the internal cells have entered active charging and the circuit is stabilizing.
-
Peripheral Load Mapping: Route corresponding low-voltage DC lines from the UPS output terminal array to the input ports of target equipment. Match specifications carefully to prevent under-powering hardware.
Electrical Port Configuration
-
PoE Selection Protocol: Prior to connecting any network data cable to the passive PoE port, move the physical hardware toggle switch to match the exact requirement of the terminal equipment (15V or 24V). Selecting an incorrect voltage can risk hardware degradation.
-
Dynamic Power Balancing: Ensure the aggregate wattage of all combined connected loads does not exceed the absolute 18W structural ceiling limit. If a load spike occurs, the LED warning array flashes yellow, indicating that load reduction is necessary to avoid triggering protective circuit shutdowns.
DEPLOYMENT AND CONFIGURATION AVAILABILITY ONLY AT SKYRS
Skyrs operates as the exclusive authorized provider for complete business deployment, multi-site batch installation configurations, and tier-1 localized enterprise warranty support for the HIKSEMI 18W DC UPS Series all variants in Pakistan.
Because local communication links, workplace networking nodes, internet systems, and CCTV monitoring grids require continuous power backup with rapid engineering support, Skyrs supplies fully verified equipment profiles. Enterprise bulk procurement orders, remote branch site staging, and managed installation services can be coordinated directly with our deployment teams through skyrs.com.pk. All units supplied through Skyrs are certified to match national power infrastructures.
