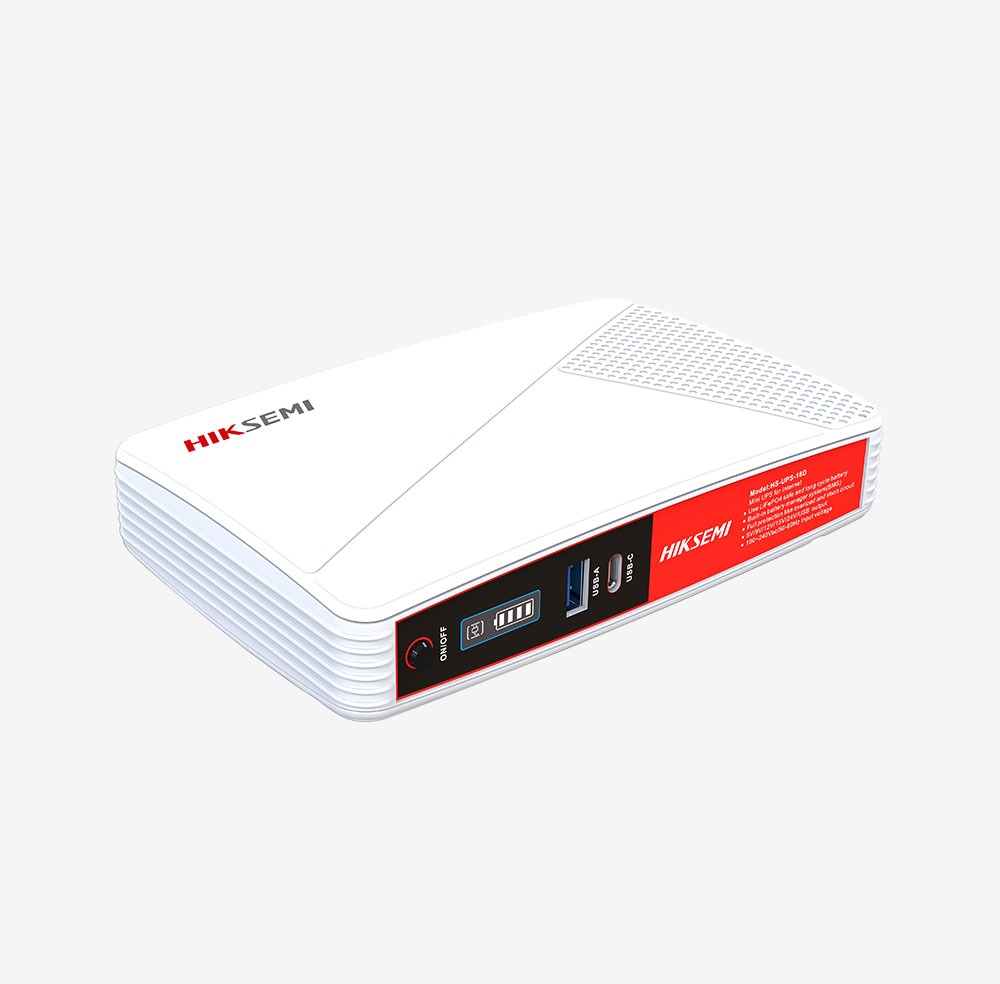

HIKSEMI 18W Mini DC UPS Technical Data Sheet
The HIKSEMI 18W Mini DC Uninterruptible Power Supply (Model: HS-UPS-18D) is an enterprise-to-consumer grade backup power system engineered to prevent operational downtime for low-voltage IT nodes. Built to counteract localized grid shedding, voltage sags, and sudden power failures, it provides clean, uninterrupted multi-rail direct current (DC) and Power over Ethernet (PoE) backups for network routers, modems, IP cameras, and smart edge access nodes.
Technical Specifications
Hardware Configuration Variants for SKYRS (Pakistan)
To maintain structural alignment with varying hardware architectures throughout network distribution nodes across Pakistan, the HS-UPS-18D system is deployed via two targeted variant profiles through SKYRS:
-
LiFePO4 Long-Lifecycle Variant: Equipped with Lithium Iron Phosphate cells. This specific build is dedicated to heavy-duty, high-heat infrastructure layouts within Pakistan where high cycle life and thermal stability under prolonged loads are critical.
-
High-Density Lithium-Ion Variant: Engineered with optimized standard Li-ion cells to optimize rapid-charge capability and maximum energy density. This layout works best for fast turnover charge intervals in compact network enclosures.
Deployment, Installation, and Configuration
Exclusive Distribution & Support Notice: Procurement allotments, custom localized multi-pin interface patches, operational warranties, and direct deployment workflows for the HIKSEMI HS-UPS-18D ecosystem are offered exclusively through SKYRS service channels in Pakistan.
Deployment Phase
-
Load Summation Analysis: Verify that the total aggregated wattage of connected peripheral endpoints (e.g., matching a Wi-Fi ONT and an auxiliary security camera) does not exceed the continuous 18W system ceiling.
-
Environmental Constraints: Ensure installation surfaces allow proper heat dissipation through the ABS structural chassis. Mount away from raw damp zones or unventilated network enclosures to prevent overheating.
Installation Procedure
-
Disconnect the native AC adapters from your active network terminal (such as a fiber optical network terminal or a network router).
-
Plug the integrated high-voltage AC cord of the HIKSEMI Mini DC UPS directly into a standard regional wall outlet (AC 220V, 50Hz).
-
Connect the appropriate low-voltage DC-to-DC connection jumper from the designated output channel on the UPS terminal to the input barrel socket of your network hardware.
Configuration Protocol
The system uses an autonomous Zero-Transition Smart Chip Control mechanism that eliminates software setup requirements. System behavior auto-configures based on manual selector switches:
-
Voltage Rail Select Setting: Prior to powering the endpoint device, manually move the physical voltage selector switch on the back of the device to the exact required configuration (9V, 12V, 15V, or 24V PoE) to match your hardware’s exact specifications.
-
Automated Failure Transition: When utility power drops, the internal core shifts the system state within 0ms (instantaneous cutoff mitigation). This routes active power straight from the internal battery array to the output terminal rails without dropping network connections or triggering system reboots.
