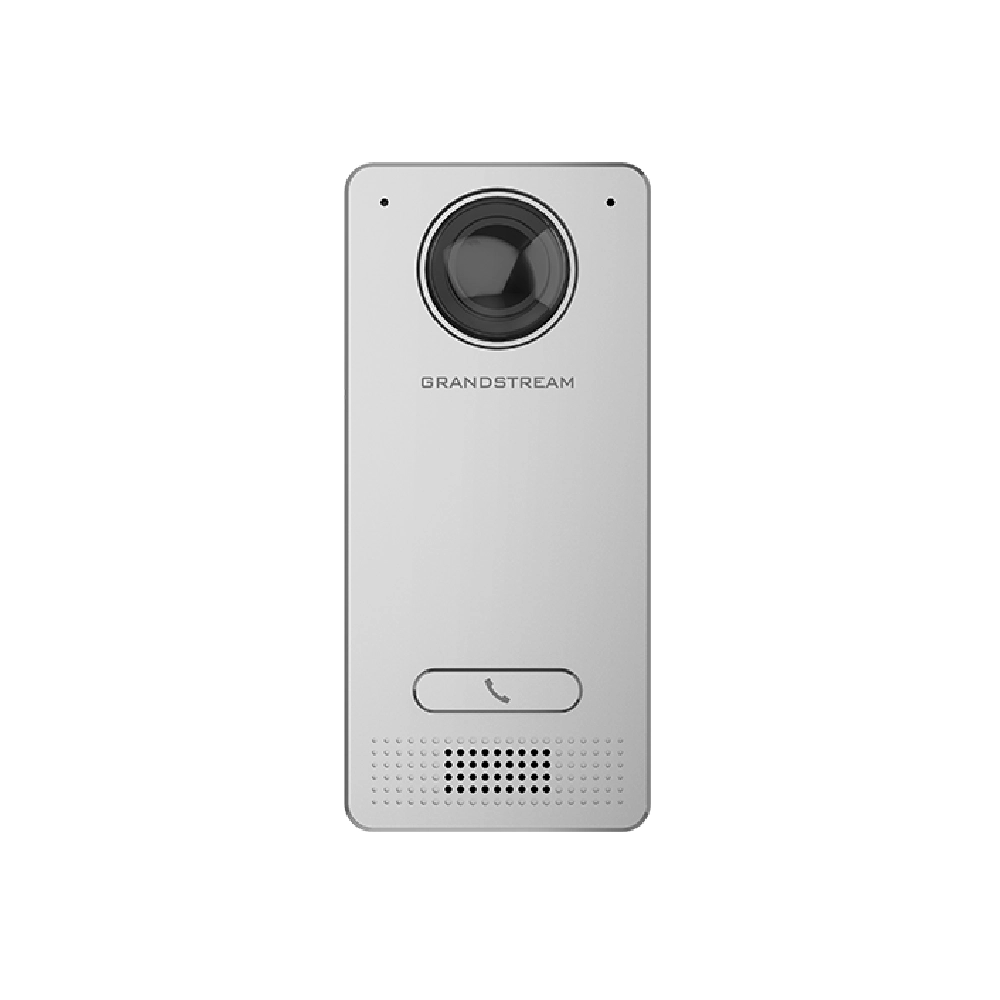

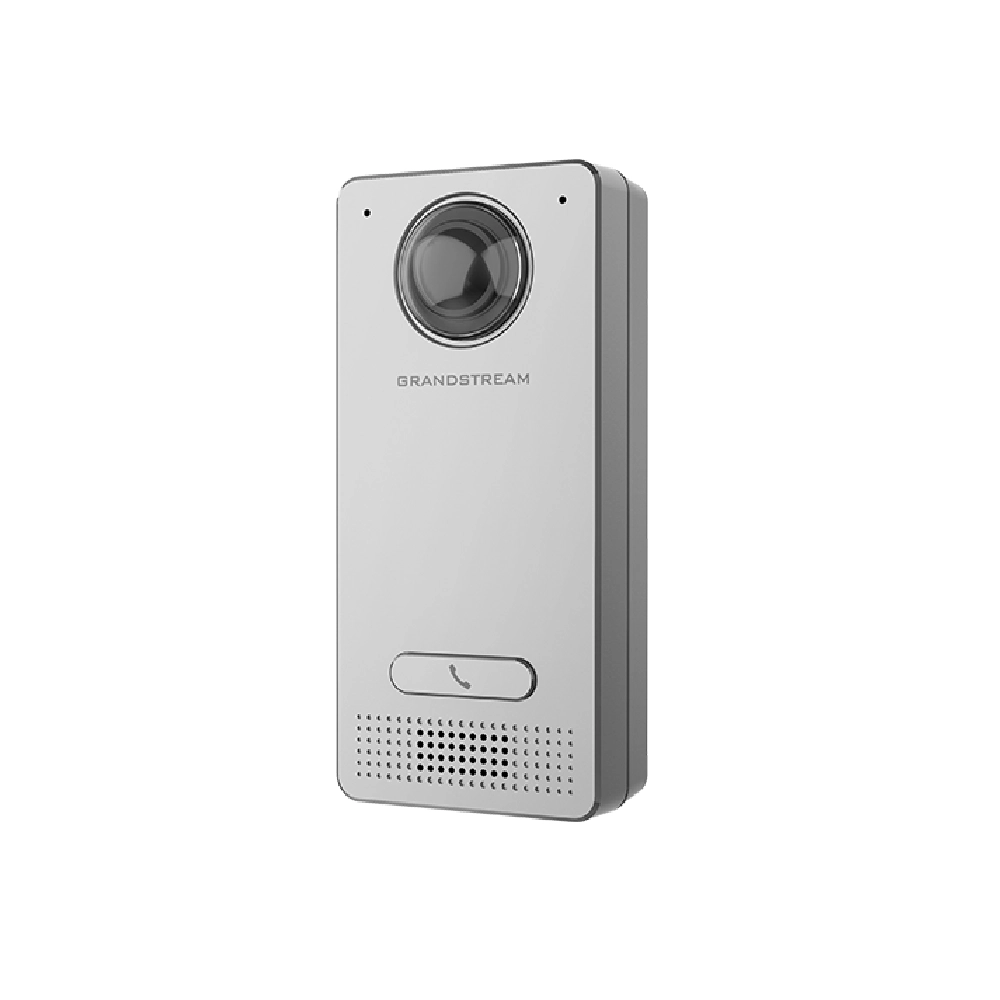

Grandstream GDS3712 – HD IP Audio Door System

Enhance security with the Grandstream GDS3712 HD IP Video Door System — featuring a 1080p camera, crystal-clear audio, weatherproof metal body, and easy SIP integration for offices, apartments, and commercial spaces.

Product Specification:

  • Video: 1080p Full HD, 180° hemispheric camera, up to 30 fps
  • Audio: Built-in microphone (1.5 m range, echo cancellation) and 2 W HD speaker (up to 3 m coverage)
  • Access & Alerts: One call button (blue LED), two alarm inputs, and two relay outputs for electric lock or alarms
  • Streaming & Compression: Multi-stream capability—1080p for recording, 720p for SIP calls, 320p for mobile; supports H.264 & MJPEG codecs
  • Network & Power: 10/100 Mbps Ethernet with PoE (Class 3) or optional 12 V DC power
  • Security & Protocols: Supports SIP/VoIP, RTSP, TR-069 provisioning, HTTPS, TLS, SRTP, VLAN/QoS, encrypted configuration, AES-256
  • Analytics: Motion detection with privacy masks; event-triggered snapshots via email/FTP
  • Durability: Metal housing rated IP66 (weatherproof) and IK10 (vandal resistant)
  • Mounting: Options for on-wall or in-wall installations (in-wall kit sold separately)
  • Dimensions & Weight: On-wall: 173 × 80 × 36 mm; In-wall: 217 × 120 × 11.6 mm; Weight: ~0.625 kg
  • Environmental Range: Operates from −30 °C to 60 °C; storage from −35 °C to 60 °C; humidity 10–90% non-condensing
  • Certifications: CE, FCC, IC, RCM, UKCA

Description

Grandstream GDS3712 – HD IP Audio Door System in Pakistan

The Grandstream GDS3712 is a compact yet powerful HD IP Audio Door System designed to provide reliable access control and crystal-clear voice communication. Built for both indoor and outdoor installations, it’s the perfect choice for offices, apartments, commercial buildings, and gated communities. With its SIP intercom support and advanced security features, the GDS3712 ensures that you can manage entry points with ease and confidence.

Why Choose the Grandstream GDS3712?

The GDS3712 is more than just a door intercom — it’s a complete security and communication solution. Here’s why it stands out:

  • Reliable Access Control: Grant or deny access remotely using the integrated door control relay.
  • Crystal-Clear Communication: HD audio and dual microphones deliver clear voice quality, even in noisy environments.
  • Built for All Conditions: IP66-rated weatherproof housing and IK10 vandal resistance ensure long-lasting durability.
  • Seamless SIP Integration: Works with any IP PBX system, VoIP network, or video management software.
  • Simple Installation: Supports PoE (Power over Ethernet) to reduce wiring complexity and costs.

Benefits of Installing the GDS3712

  • Improved Security: Monitor visitors before granting entry.
  • Convenient Communication: Talk to visitors directly via intercom.
  • Cost-Effective Solution: One device covers both communication and access control.
  • Scalable Integration: Connect with Grandstream IP phones, softphones, and GDS Manager software.
  • Peace of Mind: Get real-time alerts for tampering or motion detection.

Key Features of Grandstream GDS3712

  1. HD Audio with advanced echo cancellation for clear conversations.
  2. Dual Microphones with up to 1.5m voice pickup range.
  3. IP66 Weatherproof & IK10 Vandal Resistant metal casing.
  4. Supports SIP & VoIP Communication for flexible integration.
  5. PoE Support for power and data over a single cable.
  6. Door Control Relay for secure unlocking from any location.
  7. Tamper Alarm & Motion Detection for enhanced safety.
  8. Integration with GDS Manager for centralized device control.
