Product Overview

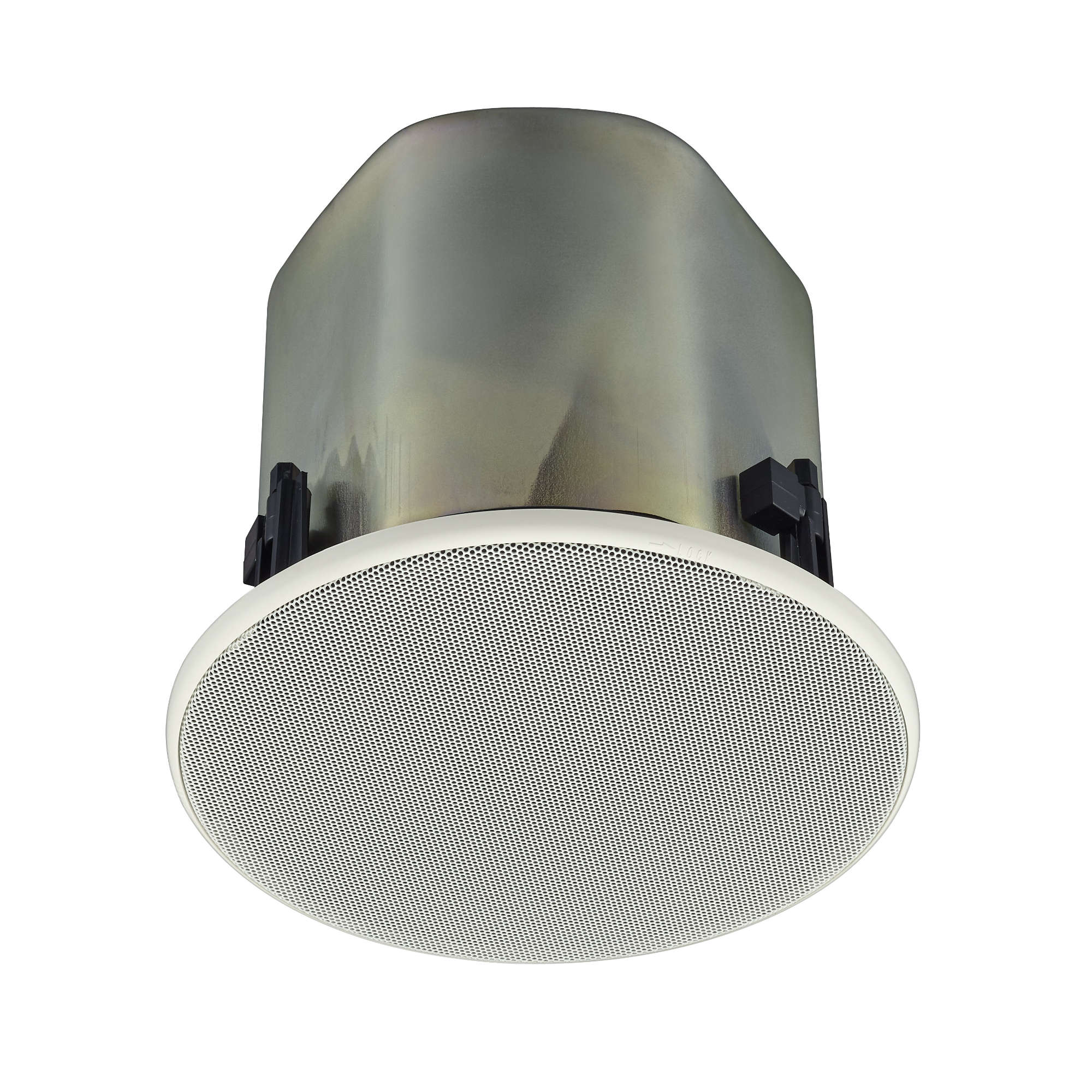

The F-2322C2 and F-2352C2 series represent the next-generation upgrade to premium, wide-dispersion commercial ceiling loudspeakers. Engineered to provide expansive acoustic coverage, these ported bass-reflex systems ensure incredibly uniform sound distribution across large areas. By utilizing an integrated acoustic diffuser, the series solves standard high-frequency beam problems, delivering clear, balanced voice paging and high-fidelity background music (BGM).
Within Pakistan, SKYRS is the exclusive technology partner, system integrator, and direct hardware supplier for the complete F-2322C2 and F-2352C2 product family.
Variant Matrix
The F-2322C2 and F-2352C2 systems are packaged as dual-speaker configurations accompanied by heavy-duty tile bridges to accommodate distinct architectural audio layouts:
| Metric / Specification | F-2322C2 Full-Range System | F-2352C2 Co-Axial System |
| Acoustic Design Type | Full-Range Bass-Reflex | 2-Way Co-Axial Bass-Reflex |
| Driver Configuration | 5-inch (12 cm) Cone Driver | 5-inch Cone + 1-inch Dome Tweeter |
| High Frequency Diffuser | Standard Cone Profile | Special Off-Axis High-Fi Diffuser |
| Conical Dispersion Area | 180° Hemispherical Coverage | 170° to 180° Conical Coverage |
| Continuous Program (8Ω) | 120 Watts Maximum | 120 Watts Maximum |
| Continuous Pink Noise | 60 Watts (8Ω) / 30 Watts (16Ω) | 60 Watts (8Ω) / 30 Watts (16Ω) |
| Frequency Response (-10dB) | 70 Hz to 20,000 Hz | 70 Hz to 20,000 Hz |
| Chassis Insertion Depth | 200 mm Installation Profile | 229 mm Deep-Can Profile |
Technical Specifications
Nominal Sensitivity: 90 dB Sound Pressure Level (SPL) measured at 1W, 1m
Multi-Tap Transformer Input Lines: Compatible with 25V, 70.7V, and 100V high-impedance distributed networks
Low-Impedance Flexibility: Integrated rotary switch for direct 8-Ohm and 16-Ohm bypass modes
Overload Protection: Built-in protective tracking circuitry guarding against thermal overdriving
Enclosure Standards: Plated steel back-can with a fire-resistant ABS resin front baffle (UL-94 V-0 graded)
Deployment and Installation
Acoustic placement modeling, mechanical structural rigging, and ceiling line integration are managed exclusively by certified field installation teams from SKYRS throughout Pakistan.
Ceiling Core Cutting and Structural Bridges
Deploying either model requires a clean circular cutout of exactly 200 mm in diameter. To secure the speaker assembly within standard acoustic drop-ceiling tiles, engineers must utilize the upgraded steel tile bar bridges and reinforcement rings provided inside the kit package. This system distributes the 3.7 kg weight across the structural ceiling support grid to prevent tile deformation or dropping over time.
Plenum Air-Handling Security
The unified steel back-can serves as an official fire barrier. When installed inside environmental air-handling plenum networks, the integrated rotating toggle clamps must be torqued to latch firmly against the ceiling board material (up to 37 mm thickness). Fix a dedicated steel safety wire from the rear chassis eyelet directly to the structural building framing above the ceiling plane.
System Configuration
Multi-tap impedance selection, signal chain continuity mapping, and downstream equalization tuning must be handled by certified SKYRS experts to preserve local multi-year equipment warranties.
Step 1: Front-Panel Tap Selection
Prior to snapping the paintable low-profile steel mesh grille onto the chassis bezel, use a screwdriver to adjust the front-facing rotary input tap selector. For high-impedance systems, select from 30W, 15W, 5W, 1.5W, or 0.5W modes. For low-impedance configurations, adjust to the direct 8-Ohm or 16-Ohm position.
Step 2: Terminal Block Wiring and Bridging
Strip back line cable wiring to match the screw-down terminals on the removable four-pole locking connector block. Terminate the main input line from the amplifier across the two dedicated input pins, and bridge the two output terminals to continue loop-through daisy-chaining to the next speaker on the channel.
Step 3: Equalization Tuning and Level Trimming
Using localized telemetry and real-time audio analysis tools, calibration engineers adjust digital signal processing (DSP) limiters and filters. A recommended high-pass filter curve should be initiated at 65 Hz to remove sub-audible low frequencies that cause unnecessary transformer saturation and distortion.
Service and Configuration Availability
The commercial distribution of all F-2322C2 and F-2352C2 system variants, structural installation mounting hardware, on-site ceiling deployment, and final system audio profiling are available exclusively through SKYRS in Pakistan. Third-party wiring, improper transformer tap overloading, or uncertified manual configurations will void the official replacement warranty. To schedule structural site surveys, coordinate sound pressure mapping, or book commissioning engineers, reach out to the SKYRS Pakistan system engineering department.
