Exvist ITS2EV 1080P@60FPS Wireless HDMI & VGA Extender – 328ft Range, 1-to-4 Receivers, Dual Output Support

Exvist ITS2EV Series Wireless HDMI Extender Data Sheet

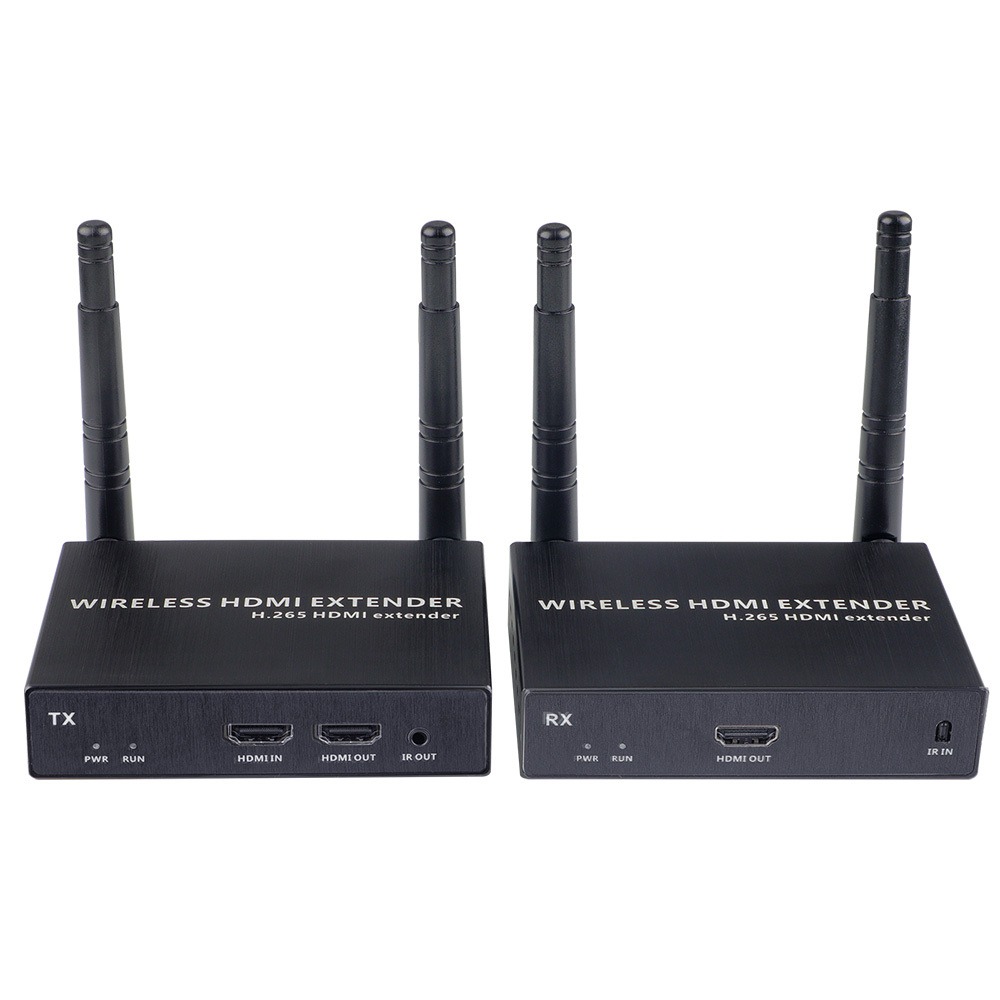

The Exvist ITS2EV Series is a high-performance, long-range wireless and wired H.265 1080P Full HD HDMI Extender system. Engineered specifically as a heavy-duty image transmission system, it incorporates dual-interface capabilities, making it optimized for multi-screen broadcasting, live video production, advanced corporate environments, and industrial monitoring matrices.

The full ITS2EV product lineup, along with specialized technical deployment, physical structural installation, and custom network configuration services, is available in Pakistan exclusively through SKYRS.

Technical Specifications Summary

• Video Encoding: H.265 / HEVC High-Efficiency Hardware Compression

• Max Resolution: 1920x1080P @ 60fps (Full HD), backward compatible with 720P

• System Latency: Gaming-grade ultra-low latency delay (< 90ms)

• Wireless Distance: Up to 656 feet (200 meters) in clear Line-of-Sight (LoS) open-air conditions

• Wired Distance: Up to 985 feet (300 meters) when integrated into a local network switch or router using Cat5e/6 Ethernet cabling

• Wireless Frequency: 2.4GHz & 5.8GHz Dual-Band transmission with dual 5dBi external high-gain antennas

• Wi-Fi Spectrum Control: Configurable wireless channels on the Transmitter to eliminate local RF interference

• Protocol Integration: Native RTSP (Real-Time Streaming Protocol) support on the Transmitter for direct IP network streaming

• System Topology: Supports 1-to-1 Point-to-Point and 1-to-Many Multicast Broadcasting (1 Transmitter to a maximum of 8 Receivers simultaneously)

• Audio Sync: Lip-sync corrected Stereo Audio Pass-through

• Hardware Housing: Industrial aluminum alloy enclosure with dual-row side heat dissipation for continuous 24/7 heavy-duty operations

• Power Parameters: DC 12V / 1A power adapter input

ITS2EV Variant Matrix Available at SKYRS

SKYRS manages the local distribution, warranty, and network scaling for all system variants across Pakistan:

• ITS2EV-Standard Link: 1x Transmitter (TX) + 1x Receiver (RX). The baseline combination package for direct point-to-point long-range video extensions.

• ITS2EV-M2 Dual Display: 1x Transmitter + 2x Receivers. Tailored for dual-screen monitoring environments or secondary boardroom displays.

• ITS2EV-M4 Quad Distribution: 1x Transmitter + 4x Receivers. Optimized for mid-sized operations, localized digital signage, and houses of worship.

• ITS2EV-M8 Broadcast Arena: 1x Transmitter + 8x Receivers. Maximum-tier hardware layout built for expansive surveillance hubs, command centers, and large-scale festival screens.

• ITS2EV-RX Expansion Node: Standalone Receiver units sourced individually to upscale an active transmitter network to match infrastructure growth up to the 8-node limit.

Deployment and Installation Services

SKYRS provides complete, certified turnkey physical installation across industrial, corporate, and commercial sites in Pakistan.

• Spatial & RF Site Audits: SKYRS field engineers execute spectrum scanning at your facility to analyze localized 2.4GHz/5.8GHz Wi-Fi traffic, locking down clean operating channels to ensure drop-free signal clarity.

• Structural Mounting & Alignment: Precise physical mounting of the compact aluminum TX/RX modules adjacent to sources (cameras, PCs, media hubs) and displays. Antennas are deliberately oriented to maximize penetrative line-of-sight signal paths.

• Hybrid Infrastructure Execution: Laying down physical Cat6 shielded backbones in complex architectural spaces with dense concrete or metal structural barriers, switching from wireless to a 300-meter wired network layout where required.

Configuration and Integration Services

To eliminate deployment complexities, SKYRS engineers deliver complete hardware and network optimization tailored to your network:

• 10-Second Hardware Pairing: Synchronizing devices via Exvist’s proprietary single-cable RJ45 physical sync protocol to safely bind new expansion receivers to the master transmitter.

• Subnet Alignment: Reconfiguring default hardware IP addresses (Transmitter: 192.168.1.166 / Receiver: 192.168.1.167) to match your enterprise network’s specific subnet layout without triggering IP conflicts.

• RTSP Stream Routing: Mapping the transmitter’s live encoding feed directly into third-party platforms, including VLC Media Player, OBS Studio, or Network Video Recorders (NVRs) via the standard rtsp://192.168.1.166/ch0/main network path.

• Adaptive Resolution Management: Configuring the receiver’s hardware RST framework to cycle and lock optimal target output resolutions (1080P/720P) depending on the technical capabilities of the connected displays.

Exclusive Availability Notice

Authorized Statement: The Exvist ITS2EV Series hardware line, alongside authorized on-site engineering deployment, specialized structural installation, and technical configuration support, is exclusively available via SKYRS within Pakistan. Contact your assigned SKYRS account manager for custom layout topologies and hardware quoting.
