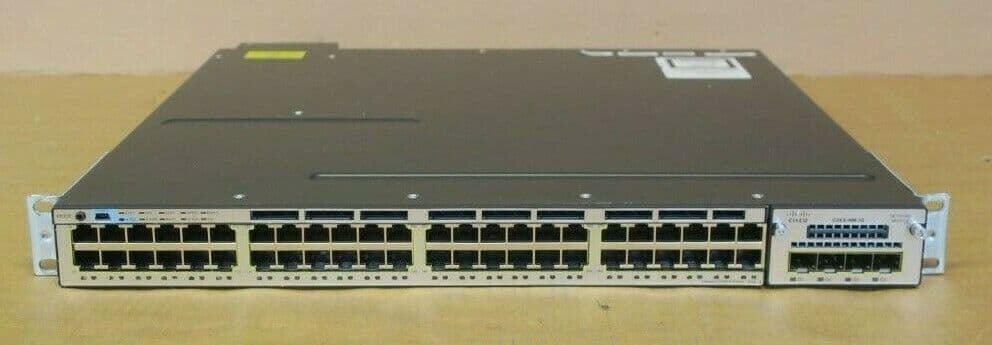

The Cisco Catalyst WS-C3750X-48PF-L is a high-performance, enterprise-class stackable switch designed to meet the rigorous demands of modern data, voice, and video networks. In Pakistan, SKYRS provides these units along with end-to-end technical support for local businesses.
This specific model is the “Full PoE” variant of the 3750-X series, meaning it can provide 30W of PoE+ power across all 48 ports simultaneously when equipped with the correct power supply configuration.
| Feature | Specification |
| Total Ports | 48 x 10/100/1000 Ethernet Ports |
| PoE Support | IEEE 802.3at PoE+ (up to 30W per port) |
| PoE Budget | 800W (with default 1100W AC power supply) |
| Forwarding Rate | 101.2 Mpps |
| Switching Capacity | 160 Gbps |
| Software Image | LAN Base (L-suffix) |
| Stacking | Cisco StackWise Plus (64 Gbps) & StackPower |
| Form Factor | 1RU Rack-mountable |
While the 48PF-L is the full-power flagship, the 3750-X series includes several variants available through SKYRS to suit different budget and power requirements:
WS-C3750X-48P-L: 48-port PoE+ with a lower default PoE budget (435W).
WS-C3750X-48T-L: 48-port Data-only (No PoE support).
WS-C3750X-48U-L: 48-port UPOE (Up to 60W per port for high-draw devices).
S-Suffix Models (-S): These come with the IP Base feature set, allowing for basic Layer 3 routing (OSPF stub, EIGRP stub).
E-Suffix Models (-E): These include IP Services, providing full Layer 3 routing capabilities (BGP, OSPF, VRF-lite).
SKYRS offers specialized installation services in Pakistan to ensure your hardware is integrated correctly into your local infrastructure.
Rack Mounting: Secure the switch using the provided 19-inch mounting brackets. Ensure 3 inches of clearance for airflow.
Power Redundancy: The 48PF-L supports dual modular power supplies. For full redundancy and maximum PoE budget, it is recommended to populate both slots with C3KX-PWR-1100WAC units.
Stacking (Optional): Use Cisco StackWise cables to connect up to 9 switches into a single logical unit. Connect StackPower cables to share power across the stack.
For a “brand-new-out-of-the-box” setup, use the following steps:
Express Setup: Press and hold the Mode button for 3 seconds until all system LEDs turn green.
PC Connection: Connect your PC to any downlink port and navigate to http://10.0.0.1 in a browser (default credentials are typically cisco/cisco).
CLI Access: Connect via the RJ-45 or USB console port using a terminal emulator (9600 baud rate).
SKYRS is a premier provider of Cisco networking solutions in Pakistan, offering unique advantages for local procurement:
Local Inventory: Immediate availability of WS-C3750X-48PF-L and its modules (C3KX-NM-1G, C3KX-NM-10G) in major cities like Karachi, Lahore, and Islamabad.
Professional Services: SKYRS engineers provide on-site configuration, including VLAN tagging, Inter-VLAN routing, and Spanning Tree Protocol (STP) optimization.
Warranty & Support: Units purchased through SKYRS come with localized technical support and replacement warranties, bypassing the long lead times of international RMA processes.
Skyrs stands as the premier cisco equipment series distributor Pakistan, offering unmatched reliability for your digital infrastructure. We provide the best cisco equipment to power modern software houses and high-traffic environments. Our inventory features Branded used Cisco switches and Refurbished Cisco switches for cost-effective scaling. You can find used cisco switches in different cities like karachi, lahore, islamabad, rawalpindi, and faisalabad. We ensure the most competitive Cisco box pack price for new deployments across the country.
Skyrs is the only vendor in Pakistan providing specialized equipment for call center call centre in Pakistan. Our solutions support high-density variants for platforms like Zoom and RingCentral seamlessly. We also offer routing cisco equipment designed for high-uptime environments and complex data handling.
The ciscocisco Switches WS-C3750X-48PF-L all variants deliver 48 Full PoE+ ports for enterprise-level performance.
Functionality: StackWise Plus technology allows for 64 Gbps of interconnect throughput.
PoE Capabilities: The cisco Switches WS-C3750X-48PF-L PoE power budget provides up to 800W for connected devices.
Throughput: Check the ciscocisco Switches WS-C3750X-48PF-L throughput limit in our technical documentation.
Scalability: We assist with ciscocisco Switches WS-C3750X-48PF-L memory upgrade options for expanding networks.
Installation: Download the ciscocisco Switches WS-C3750X-48PF-L rack mount kit nload guide for proper setup.
For technical deep dives, view the official Cisco WS-C3750X-48PF-L Datasheet. You can also browse our internal product inventory at Skyrs.com.pk.
Cisco remains the industry leader when compared to mikrotik, h3c, aruba, ruijie, huawei, and paloalto. While aruba offers great mobility, Cisco provides superior stacking capabilities for large call centers. huawei and h3c are affordable, yet Cisco’s global support and hardware longevity are unmatched. paloalto focuses on security, whereas Cisco integrates advanced routing cisco equipment within its core switching. Specifically, the ciscocisco Switches WS-C3750X-48PF-L all variants offer more robust power redundancy than similar mikrotik models.
Skyrs offers the best cisco price in Pakistan with localized support in every province.
Sindh: Get the cisco Switches cisco Switches WS-C3750X-48PF-L price in Karachi today.
Punjab: Buy cisco equipment Lahore/Islamabad or check the cisco Switches cisco Switches WS-C3750X-48PF-L price in faisalabad.
KPK & Balochistan: We offer the ciscocisco Switches WS-C3750X-48PF-L price in peshawar and Quetta.
Bulk Orders: Contact us for a ciscocisco Switches WS-C3750X-48PF-L bulk quote for your enterprise.
We guide you through the ciscocisco Switches WS-C3750X-48PF-L security license activation process efficiently. Stay ahead of the ciscocisco Switches WS-C3750X-48PF-L EOSL date 2025 with our cisco Migration services. Even in the future, we provide the ciscocisco Switches WS-C3750X-48PF-L used price 2026 for budget planning.
How to reset cisco equipment? Use the mode button during boot-up to enter the flash initialization and reset the config.
Where can I find a cisco equipment configuration guide? Skyrs provides a comprehensive cisco Switches WS-C3750X-48PF-L configuration guide for all our clients.
How do I perform a cisco VLAN configuration? Access the CLI and use the ‘vlan’ command to segment your call center network traffic.
Where to get a cisco firmware update download? Access our client portal for verified IOS images and latest firmware updates.
Can I get cisco Switches cisco Switches WS-C3750X-48PF-L datasheets download? Yes, links are available on our website and the manufacturer’s official support page.
How to perform a ciscocisco Switches WS-C3750X-48PF-L ROMMON update? Download the latest firmware and boot from the USB or TFTP server for the update.
