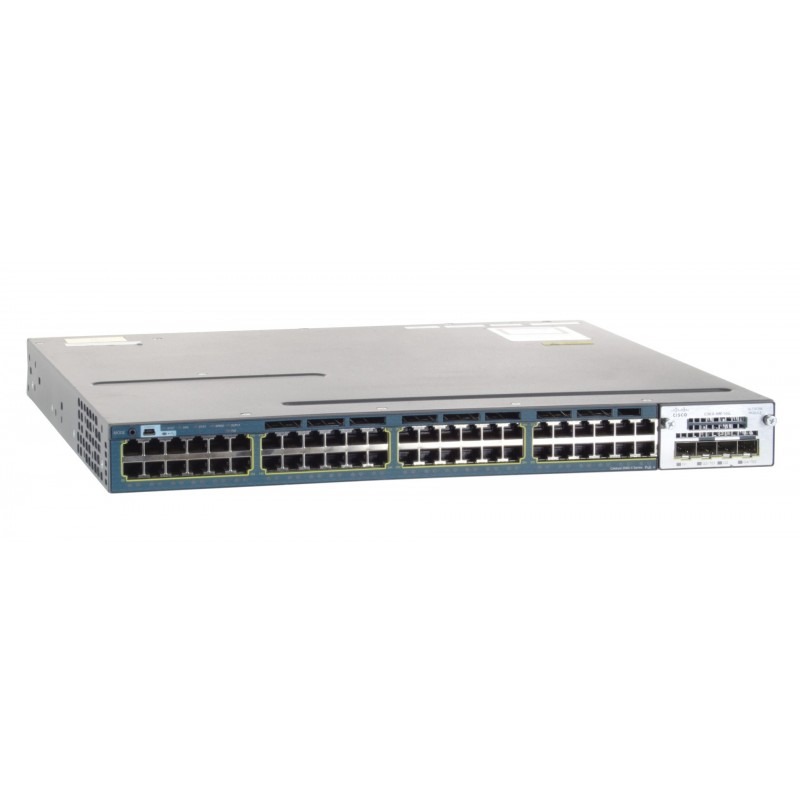

The Cisco Catalyst WS-C3560X-48PF-L is a high-performance, standalone enterprise switch designed for high-density PoE+ requirements. The “PF” indicates Full PoE+ (Power over Ethernet Plus), providing up to 30W of power on all 48 ports simultaneously.
| Feature | Specification |
| Ports | 48 x 10/100/1000 Ethernet Ports |
| PoE Budget | 800W (Full PoE+ Support) |
| Software Image | LAN Base (L2 switching with static routing) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 101.2 Mpps |
| Network Modules | Optional 4 x 1GE or 2 x 10GE SFP+ modules |
| RAM / Flash | 256 MB / 64 MB |
| Redundancy | Dual modular power supplies and fans |
The 3560-X series is categorized by its software feature sets and power capabilities. While the hardware is identical, the license determines the Layer 3 capabilities.
| Model Variant | Software Feature Set | Best Use Case |
| WS-C3560X-48PF-L | LAN Base | Standard L2 access with static routing. |
| WS-C3560X-48PF-S | IP Base | Full L3 routing (EIGRP, OSPF Stub). |
| WS-C3560X-48PF-E | IP Services | Advanced L3 (BGP, VRF-lite, full OSPF). |
To ensure optimal performance and longevity, follow these deployment standards:
Rack Mounting: Install using standard 19-inch rack brackets. Ensure 1RU (1.75 inches) of vertical space.
Cooling: Maintain a minimum 3-inch clearance on all sides. Airflow is front-to-back.
Power Redundancy: For critical deployments, utilize the second power supply bay (C3KX-PWR-1100WAC) to prevent downtime during power failure.
Expansion: Install the C3KX-NM-10G module for high-speed fiber uplinks to the core network.
Configuration is primarily handled via the Cisco IOS Command Line Interface (CLI).
Connect via the console port (RJ-45 or USB Mini-B).
Assign Identity:
Bash
hostname SKYRS-ACC-01
Configure Management VLAN:
Bash
interface vlan 1
ip address 10.1.1.5 255.255.255.0
no shutdown
Enable PoE on Ports:
Bash
interface range gigabitethernet 1/0/1 - 48
power inline auto
SKYRS is a leading provider of enterprise networking hardware in Pakistan, offering specialized services for the Cisco Catalyst 3560-X series.
Stock Availability: We maintain ready stock of the WS-C3560X-48PF-L and its IP Base/Services variants.
Expert Installation: Our certified engineers provide on-site installation and cabling services in Karachi, Lahore, and Islamabad.
Configuration Support: SKYRS offers custom configuration (VLANs, Trunking, Security) as part of our deployment package.
Warranty: Every unit supplied by SKYRS undergoes a 20-point rigorous testing process and comes with a local replacement warranty.
Skyrs stands as the leading Cisco WS-C3560X-48PF-L equipment series distributor Pakistan, offering unmatched networking reliability for modern businesses. We provide the best Cisco equipment to empower software houses and equipment for call center call centre in Pakistan. Our inventory features branded used Cisco switches and high-quality refurbished Cisco switches for cost-effective scaling. Clients in Karachi, Lahore, Islamabad, Rawalpindi, and Faisalabad trust our premium hardware solutions. We offer the most competitive Cisco box pack price for your critical Cisco migration projects today.
The Cisco Switches WS-C3560X-48PF-L provides high-density 48-port Gigabit connectivity with full PoE+ capabilities. This model delivers a robust 3560X-48PF-L PoE power budget of 800W for your devices. It serves as the backbone for high-performance routing Cisco equipment in demanding office environments.
Consult the Cisco 3560X-48PF-L configuration guide for seamless Layer 2 and Layer 3 setup.
The device maintains a high throughput limit of 101.2 Mpps to prevent network bottlenecks effectively.
Engineers can perform a Cisco 3560X-48PF-L memory upgrade to improve complex processing tasks.
Use the official Cisco 3560X-48PF-L rack mount kit for secure data center installation.
Ensure stability with a ROMMON update and a Cisco firmware update download from authorized portals.
We assist with security license activation to protect your sensitive corporate data from external threats.
Skyrs is the only vendor in Pakistan providing specialized equipment for call center call centre and software houses. We stock all variants of the Cisco 3560X-48PF-L to support Zoom and RingCentral applications. Our team provides an expert Cisco equipment configuration guide and assists with detailed Cisco VLAN configuration.
We offer the best Cisco price in Pakistan with fast delivery across all major provinces.
Cisco 3560X-48PF-L price in Karachi: Available for immediate dispatch to your business.
Cisco 3560X-48PF-L price in Peshawar and KPK: Leading rates for regional office expansions.
Cisco 3560X-48PF-L price in Faisalabad and Quetta: Robust inventory for nationwide shipping.
Buy Cisco equipment Lahore/Islamabad: Visit our local hubs for hands-on inspection and pickup.
Request a Cisco 3560X-48PF-L bulk quote for large-scale infrastructure deployments.
The Cisco Switches WS-C3560X-48PF-L outperforms rivals like Mikrotik, H3C, Aruba, Ruijie, Huawei, and Palo Alto.
| Feature | Cisco WS-C3560X-48PF-L | Competitor Brands |
| Power Stability | Dual redundant power supplies. | Often single power input. |
| Call Center Support | Optimized for Zoom/RingCentral. | Variable latency issues. |
| Local Support | Expert help in all cities. | Limited local technical presence. |
Despite the Cisco 3560X-48PF-L EOSL date 2025, the Cisco 3560X-48PF-L used price 2026 remains stable.
Official Resources:
How to reset Cisco equipment to factory defaults?
Hold the Mode button for 10 seconds during the power-on cycle until the status LED flashes.
Where can I find a Cisco 3560X-48PF-L datasheet?
You can download the official technical documents directly from the Cisco or Skyrs websites.
Does Skyrs provide warranty for used Cisco switches in Karachi?
Yes, we offer comprehensive warranties on all refurbished Cisco switches across Pakistan.
Is this switch compatible with PoE+ devices?
Absolutely, it supports high-wattage devices with its extensive PoE power budget.
