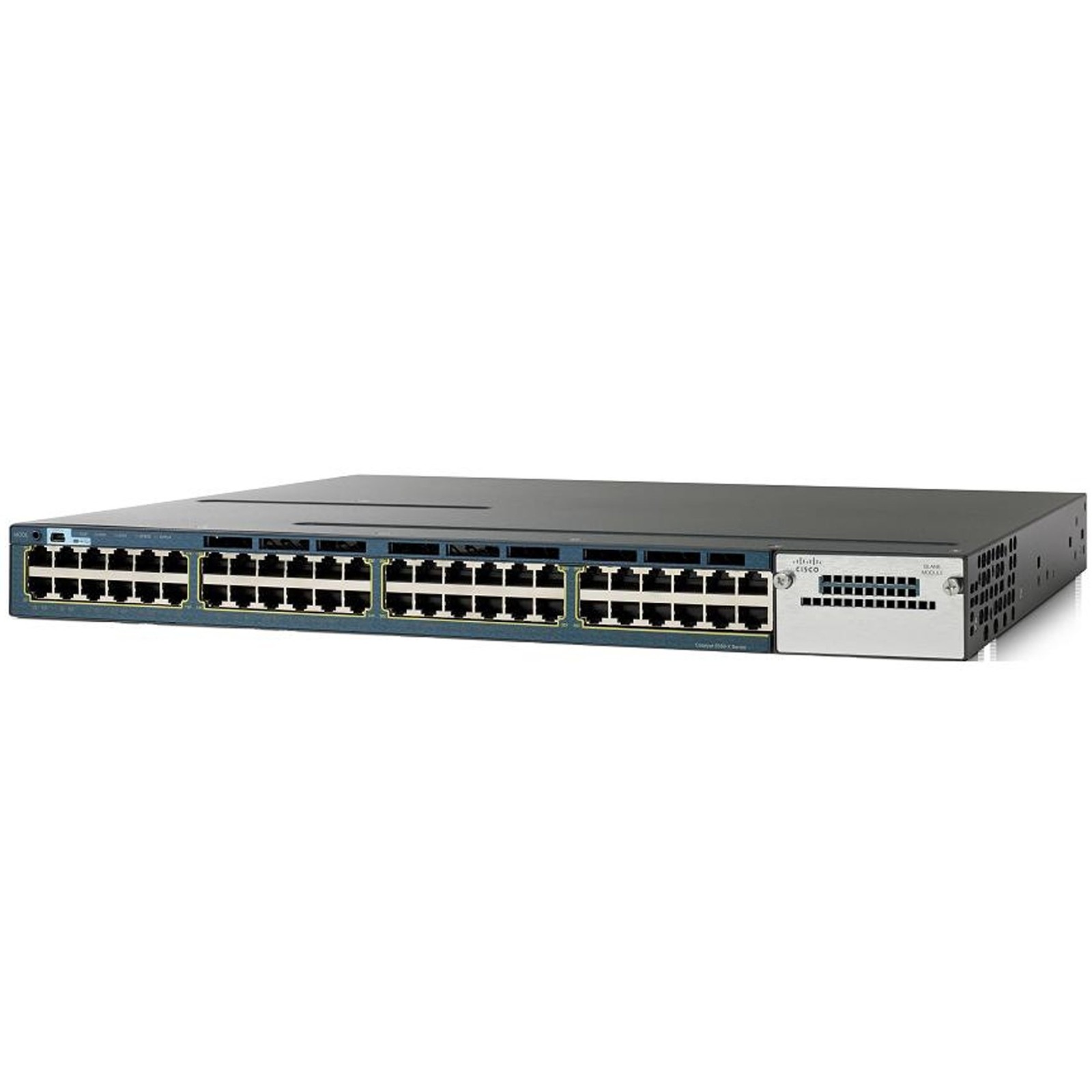

The Cisco Catalyst 3560-X Series (WS-C3560X-48P-E) is an enterprise-class standalone switch that provides high-performance Gigabit Ethernet with full Power over Ethernet Plus (PoE+). Licensed with the IP Services (E) feature set, it is designed for the distribution or core layers of medium-sized networks in Pakistan, offering advanced Layer 3 routing protocols. At SKYRS, we provide full technical lifecycle support, from hardware procurement to complex onsite configuration.
The “E” designation indicates the IP Services software, which unlocks full IPv4 and IPv6 dynamic routing, including BGP, OSPF, and EIGRP.
| Feature | Specification |
| Total Ports | 48 x 10/100/1000 Ethernet PoE+ Ports |
| PoE Budget | 435W (Standard) / Up to 800W (with 1100W PSU) |
| Forwarding Rate | 101.2 Mpps |
| Switching Capacity | 160 Gbps |
| Software Image | IP Services (Full Layer 3) |
| Uplink Slot | 1 (Supports 1G or 10G Modules) |
| Stacking | Standalone (StackPower supported for power redundancy) |
To meet the high power demands of modern IP surveillance and VoIP systems in Pakistan, SKYRS offers the 48P-E with various power and uplink configurations:
WS-C3560X-48P-E: The standard unit with a 715W AC power supply, delivering a 435W PoE budget.
WS-C3560X-48PF-E: The “Full PoE” variant equipped with an 1100W AC power supply, delivering 800W for PoE+ across all 48 ports (30W per port).
C3KX-NM-10G: Optional module adding two 10GbE SFP+ uplinks for high-speed core connectivity.
C3KX-NM-1G: Optional module adding four 1GbE SFP uplinks.
DC Power Option: Available with C3KX-PWR-440WDC for specialized telecom or industrial sites.
SKYRS provides a specialized deployment framework for the 3560-X series, tailored to the infrastructure challenges in Pakistan:
High-Density PoE Planning: We conduct a power audit to ensure your PoE budget (435W or 800W) matches your connected devices (Access Points, PTZ Cameras, IP Phones).
Thermal Management: Installation in climate-controlled racks to protect the dual redundant fan modules, especially important for high-temperature regions.
Power Redundancy (StackPower): While the 3560-X is a standalone data switch, we can deploy the Cisco StackPower technology to share power across multiple units, providing a “Zero-Footprint” redundant power system.
Cabling Infrastructure: Professional termination of Cat6/Cat6A cables to support maximum PoE+ wattage without heat buildup in cable bundles.
Expert configuration is available exclusively through the SKYRS engineering team to leverage the full Enterprise Services feature set:
Advanced L3 Routing: Configuration of BGP for multi-homing or OSPF for high-speed campus internal routing.
Network Virtualization: Implementation of VRF-lite to segment guest, surveillance, and corporate traffic on a single physical switch.
Security & Encryption: Setup of MACsec-128 hardware-based encryption for secure link-layer communication and Port Security to prevent unauthorized access.
Voice Optimization: Granular Auto-QoS configuration to ensure crystal-clear VoIP communication even during peak traffic.
Local Support & Warranty: SKYRS provides on-site troubleshooting and hardware replacement services in Karachi, Lahore, and Islamabad.
Skyrs is the only vendor in Pakistan providing the best cisco equipment for call center call centre in pakistan. We specialize in high-density networking for software houses and offices using Zoom and RingCentral platforms. Our inventory features the cisco Switches WS-C3560X-48P-E all variants to support your growing infrastructure requirements.
The cisco Switches WS-C3560X-48P-E throughput limit provides 160 Gbps of switching fabric for high-speed data. This 48-port Gigabit switch delivers robust Power over Ethernet for IP phones and wireless access points. You can check the 3560X-48P-E PoE power budget in the official datasheet.
For detailed hardware specifications, please access the cisco Switches WS-C3560X-48P-E datasheets download. Engineers can utilize 3560X-48P-E configuration guide for advanced Layer 3 routing setups. Furthermore, a 3560X-48P-E memory upgrade improves the switch’s performance during high traffic loads.
We offer a complete cisco Migration service to help transition your network to modern standards safely. We provide the 3560X-48P-E rack mount kit nload instructions for professional cabinet installation. Our team also handles the 3560X-48P-E ROMMON update to ensure long-term hardware stability.
Skyrs facilitates the 3560X-48P-E security license activation for enterprise-grade network protection. While the 3560X-48P-E EOSL date 2025 is near, these units remain highly reliable. Consequently, the 3560X-48P-E used price 2026 offers an economical solution for startups in Pakistan.
Skyrs ensures routing cisco equipment remains compatible with brands like Mikrotik, H3C, Aruba, Ruijie, Huawei, and Palo Alto. While Mikrotik is affordable, Cisco provides better reliability for a 24/7 call center call centre. Compared to Aruba, the cisco Switches WS-C3560X-48P-E all variants offer superior stacking and power management.
| Feature | Cisco 3560X-48P-E | Competitors (Huawei/H3C) |
| PoE Support | Full PoE+ on 48 Ports | Often Limited PoE |
| Software Level | IP Services (E-License) | Standard Layer 2/3 |
| Redundancy | Dual Modular Power | Single Power Supply |
As the top cisco equipment series distributor Pakistan, Skyrs serves all major cities with verified hardware.
Visit skyrs.com.pk for the most updated cisco price in Pakistan.
Get an immediate 3560X-48P-E price in Karachi for your local office.
We offer the most competitive 3560X-48P-E price in peshawar and price in kpk.
Check our weekly 3560X-48P-E price in faisalabad and price in quetta.
You can Buy cisco equipment Lahore/Islamabad directly from our regional distribution hubs.
Contact our sales team for a formal 3560X-48P-E bulk quote today.
How do I perform a cisco firmware update download?
Access the Cisco Software portal or contact Skyrs for verified cisco firmware update download links.
How to reset cisco equipment to factory settings?
Hold the Mode button during boot or use the write erase command in the console.
Do you provide help with cisco VLAN configuration?
Yes, our technical team offers a full cisco equipment configuration guide for all your VLAN needs.
What happens after the EOSL date 2025?
The switch will continue to function normally, but official Cisco support will be limited.
