This datasheet provides the technical overview for the Cisco Catalyst WS-C2960X-24TD-L and its relevant high-speed variants, specifically curated for the infrastructure requirements of SKYRS in Pakistan.
The 2960-X “TD” series represents the high-performance tier of the Catalyst family, designed for sites that require 10-Gigabit fiber uplinks and high-density Gigabit copper access.
Cisco WS-C2960X-24TD-L Technical Overview

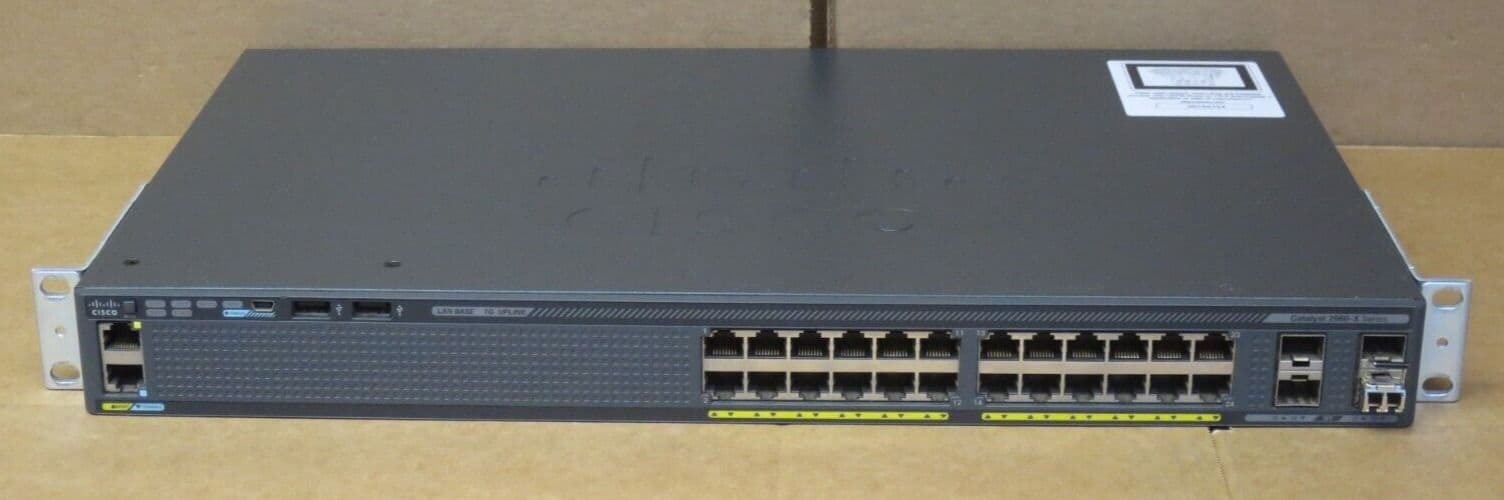

The WS-C2960X-24TD-L is an enterprise-class, stackable Gigabit Ethernet switch. It is a “Data-only” model (non-PoE), making it ideal for high-speed workstation connectivity and server-farm access where power over Ethernet is not required.
Core Specifications
Downlink Ports: 24 x 10/100/1000 Ethernet Gigabit ports.
Uplink Interfaces: 2 x 10G SFP+ (10 Gigabit Small Form-factor Pluggable Plus).
Forwarding Performance: 95.2 Mpps (Million packets per second).
Switching Capacity: 216 Gbps (Full duplex).
Stacking: Supports FlexStack-Plus (up to 8 switches, 80 Gbps bandwidth).
Software: Cisco IOS LAN Base.
Hardware: Dual-core 600 MHz CPU, 512 MB RAM, 128 MB Flash.
Comparative Variants for SKYRS
While the 24TD-L is the 10G standard for data-only sites, SKYRS utilizes several variants to address different power and port density needs across Pakistan.
Model Number Ports Uplinks PoE Budget Feature Set WS-C2960X-24TD-L 24 x GigE 2 x 10G SFP+ None LAN Base WS-C2960X-48TD-L 48 x GigE 2 x 10G SFP+ None LAN Base WS-C2960X-24PD-L 24 x GigE 2 x 10G SFP+ 370W LAN Base WS-C2960X-24TS-L 24 x GigE 4 x 1G SFP None LAN Base
Deployment and Installation Guide
For SKYRS infrastructure, following standardized installation protocols ensures maximum uptime and hardware protection in local environments.
Physical Installation
Rack Mounting: Secure the switch in a 19-inch rack using the provided brackets. For the 24TD-L, ensure 1U of vertical space.
Uplink Connectivity: Use original Cisco SFP-10G-SR or SFP-10G-LR modules for the 10G ports to connect to the SKYRS core network.
Thermal Management: The 24TD-L uses variable-speed fans. Ensure side-to-rear airflow is not obstructed by cables or other rack equipment.
Power Redundancy: Use the rear RPS connector to link with a Cisco RPS 2300 for power failover protection.
Stacking Deployment
Install the C2960X-STACK module in the rear slot.
Connect switches using CAB-STK-E cables.
A single “Master” switch will manage the configuration for all 24-port members in the SKYRS stack.
Configuration Availability at SKYRS
The specialized deployment and configuration for this model and its variants are managed exclusively by the SKYRS engineering team.
Specialized Configuration Services
10G Uplink Optimization: Configuring Link Aggregation (LACP) on the 10G SFP+ ports for high-bandwidth backhaul.
Smart Operations: Implementing Auto-SmartPorts to automatically detect and configure SKYRS-authorized devices.
Network Hardening: Enabling Cisco TrustSec and IPv6 First-Hop Security to protect against localized network threats.
Full NetFlow-Lite: Providing granular visibility into traffic patterns for capacity planning at SKYRS branches.
Availability Note: Comprehensive technical support, professional onsite installation, and certified Cisco configuration for the WS-C2960X-24TD-L are provided only through the SKYRS technical division in Pakistan.
Skyrs is the premier Cisco equipment series distributor Pakistan, offering the best Cisco equipment for diverse business needs. We provide branded used Cisco switches to modern software houses across the country. Our inventory features refurbished Cisco switches and competitive Cisco box pack price options for enterprise clients. Skyrs stands as the only vendor in Pakistan providing specialized equipment for call center call centre in Pakistan.
The Cisco WS-C2960X-24TD-L is a high-performance stackable switch designed for scalability and simplified management. It features 24 Gigabit Ethernet ports and two 10G SFP+ uplink interfaces. This model supports high-density traffic for communication platforms like Zoom and RingCentral.
The WS-C2960X-24TD-L throughput limit ensures a forwarding rate of 95.2 Mpps for smooth data flow. While this model is non-PoE, it maintains an efficient WS-C2960X-24TD-L PoE power budget of zero. Users can easily install it using the original WS-C2960X-24TD-L rack mount kit for standard cabinets. For enhanced performance, Skyrs offers the official WS-C2960X-24TD-L memory upgrade and WS-C2960X-24TD-L security license activation.
The WS-C2960X-24TD-L all variants outperform competitors like Mikrotik, H3C, Aruba, Ruijie, Huawei, and Palo Alto. While Aruba 2930F is a strong competitor, Cisco provides better integration for high-end routing Cisco equipment. Cisco’s proprietary FlexStack-Plus technology allows for simpler management than most H3C or Mikrotik alternatives. Consequently, Cisco migration remains the preferred choice for growing Pakistani software houses and call centers.
Skyrs offers the most transparent Cisco price in Pakistan for both new and used hardware. You can find the WS-C2960X-24TD-L price in Karachi, Peshawar, and Faisalabad through our outlets. We also supply used Cisco switches in Lahore, Islamabad, Rawalpindi, and Quetta. Check our latest WS-C2960X-24TD-L price in kpk for bulk requirements.
Contact us to Buy Cisco equipment Lahore/Islamabad or request a WS-C2960X-24TD-L bulk quote.
Internal Link: View Cisco Inventory at Skyrs.com.pk
External Link: WS-C2960X-24TD-L datasheets download
Q: What is the WS-C2960X-24TD-L used price 2026? A: Depending on condition, refurbished Cisco switches cost between 125,000 to 165,000 PKR this year.
Q: How to reset Cisco equipment to factory settings? A: Press and hold the Mode button for 15 seconds until the SYST LED flashes green.
Q: Where can I find a Cisco equipment configuration guide? A: Skyrs provides a complete WS-C2960X-24TD-L configuration guide with every purchase.
Q: Does it support Cisco VLAN configuration? A: Yes, it supports up to 1023 active VLANs for advanced network segmentation and security.
Q: How do I perform a WS-C2960X-24TD-L update? A: Access the Cisco firmware update download portal and use TFTP to upload the latest IOS.
