This datasheet provides a technical overview of the Cisco Catalyst WS-C2960X-24PS-L and its primary LAN Base variants, specifically optimized for high-performance PoE+ access layer networking at SKYRS in Pakistan.
The 2960-X series is an industry-standard for stackable Gigabit Ethernet switches, offering a robust foundation for converged data, voice, and video networks.

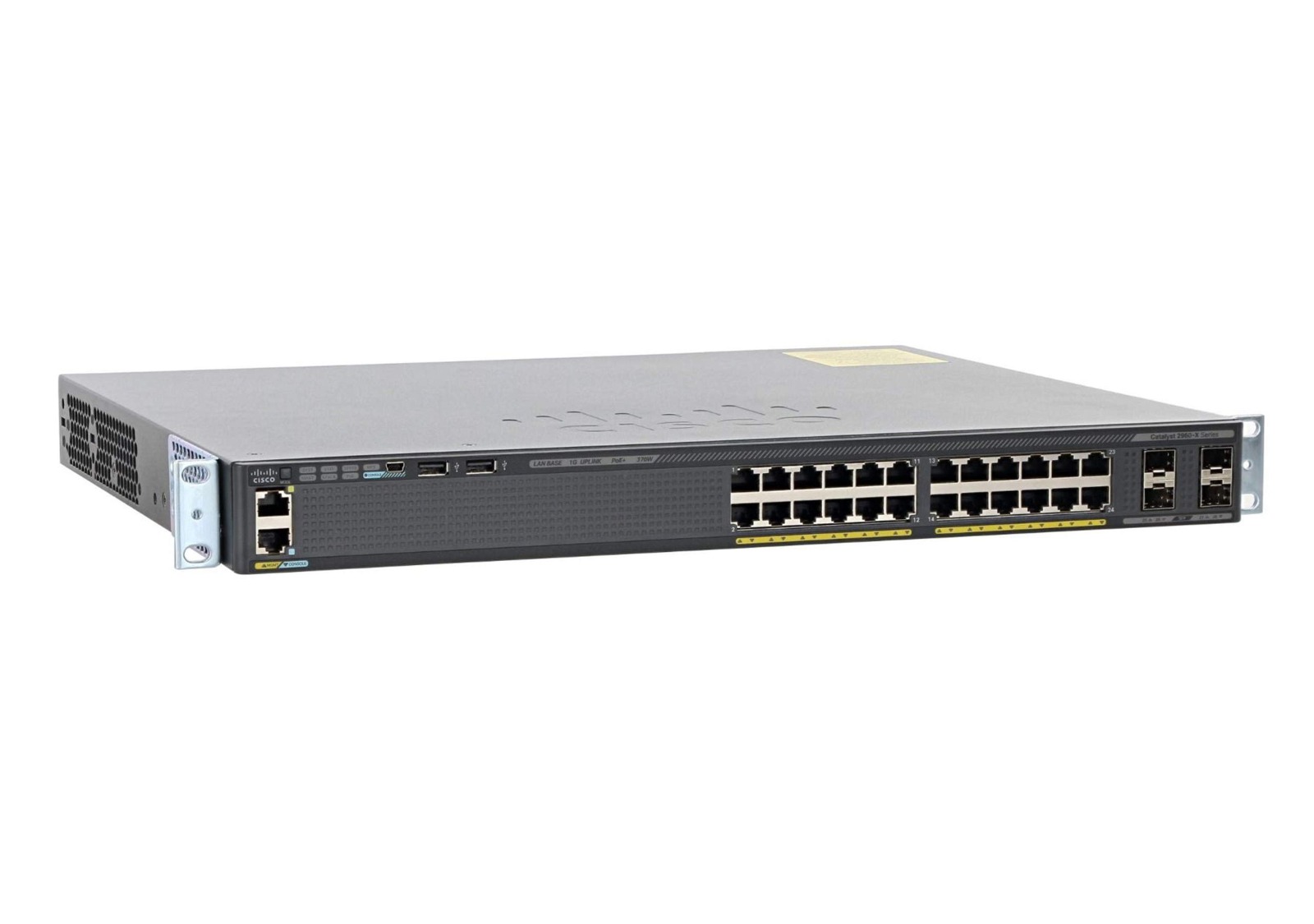

Cisco WS-C2960X-24PS-L Technical Overview
The WS-C2960X-24PS-L is a fixed-configuration, stackable switch designed to provide Power over Ethernet (PoE+) for devices such as IP phones, wireless access points, and security cameras.
Core Specifications
Downlink Ports: 24 x 10/100/1000 Ethernet Gigabit ports.
Uplink Interfaces: 4 x 1G SFP (Small Form-factor Pluggable).
PoE Power Budget: 370W total (Supports PoE+ up to 30W per port).
Stacking: Supports FlexStack-Plus (up to 8 switches, 80 Gbps throughput).
Forwarding Rate: 71.4 Mpps.
Switching Capacity: 216 Gbps.
Software: Cisco IOS LAN Base (Layer 2 switching with static routing).
Comparative Variants for SKYRS
SKYRS utilizes different 24-port PoE models within the 2960-X family to accommodate different power budgets and uplink speed requirements across Pakistan.
Model Number Ports Uplinks PoE Power Feature Set WS-C2960X-24PS-L 24 x GigE 4 x 1G SFP 370W LAN Base WS-C2960X-24PD-L 24 x GigE 2 x 10G SFP+ 370W LAN Base WS-C2960X-24PSQ-L 24 x GigE 2 SFP + 2 Cu 110W LAN Base (Fanless) WS-C2960X-48LPS-L 48 x GigE 4 x 1G SFP 370W LAN Base
Deployment and Installation Guide
For SKYRS infrastructure, following standardized installation protocols ensures maximum hardware reliability and efficient power delivery.
Physical Installation
Rack Integration: Install the switch in a standard 19-inch rack. Use the included brackets to secure the chassis at the 1U position.
PoE Management: When connecting high-draw devices (like PTZ cameras), calculate the total power draw to ensure it remains within the 370W limit.
Thermal Clearance: Ensure side-to-rear airflow is unobstructed. In high-temperature regions of Pakistan, SKYRS recommends active rack cooling to prolong power supply life.
Stacking Configuration: If expanding, install the C2960X-STACK module. Use a “ring” topology with stacking cables for path redundancy.
Hardware Setup
Console Access: Connect via the RJ-45 or USB Mini-B console port for initial configuration.
System Check: Verify the SYST LED is solid green and the PoE LED is green, indicating the power controller is ready for device attachment.
Configuration Availability at SKYRS
Customized configuration, deployment, and ongoing technical support for these units are managed and executed exclusively by the SKYRS technical division.
Exclusive Configuration Services
PoE+ Optimization: Configuring power priority on specific ports to ensure mission-critical devices (like security APs) stay powered during heavy loads.
VLAN Segmentation: Designing logical networks to separate Voice (VoIP) and Data traffic for improved performance.
Security Hardening: Implementing DHCP Snooping and Dynamic ARP Inspection (DAI) to protect the SKYRS network from localized attacks.
Stack Management: Providing a single IP address for the entire stack to simplify remote management across multiple Pakistani branches.
Note: Comprehensive onsite installation, certified Cisco configuration, and official warranty support for the WS-C2960X-24PS-L and all related variants are available only at SKYRS in Pakistan.
Skyrs is the premier Cisco equipment series distributor Pakistan, offering the best Cisco equipment for modern enterprises. We provide branded used Cisco switches to major hubs like Karachi, Lahore, and Islamabad. Skyrs stands as the only vendor in Pakistan providing specialized equipment for call center call centre in Pakistan. Our inventory includes refurbished Cisco switches and competitive Cisco box pack price options for local software houses.
The Cisco WS-C2960X-24PS-L is a stackable Gigabit Ethernet switch designed for enterprise-class access applications. It features 24 PoE+ ports and four 1G SFP uplinks for high-speed network connectivity. This model is essential for software houses using Zoom or RingCentral for seamless daily communications.
The WS-C2960X-24PS-L throughput limit ensures a forwarding rate of 71.4 Mpps for efficient data handling. It maintains a robust WS-C2960X-24PS-L PoE power budget of 370W for powering various IP devices. Administrators can perform a WS-C2960X-24PS-L memory upgrade to enhance system performance during peak traffic hours. For secure installations, Skyrs provides the WS-C2960X-24PS-L rack mount kit and WS-C2960X-24PS-L security license activation.
The WS-C2960X-24PS-L all variants offer superior reliability compared to Mikrotik, H3C, Aruba, Ruijie, Huawei, and Palo Alto. While Aruba 2930F is a strong competitor, Cisco provides better integration for high-end routing Cisco equipment. Cisco’s proprietary FlexStack-Plus technology allows for simpler management than H3C or Mikrotik budget alternatives. Consequently, Cisco migration remains the preferred choice for growing Pakistani software houses and large call centers.
Skyrs offers the most transparent Cisco price in Pakistan for both new and used hardware. You can find the WS-C2960X-24PS-L price in Karachi, Peshawar, and Faisalabad through our outlets. We also supply used Cisco switches in Lahore, Islamabad, Rawalpindi, and Quetta. Check our latest WS-C2960X-24PS-L price in kpk for bulk corporate requirements.
Contact us to Buy Cisco equipment Lahore/Islamabad or request a WS-C2960X-24PS-L bulk quote.
Internal Link: Explore Cisco Variants at Skyrs.com.pk
External Link: WS-C2960X-24PS-L datasheets download
Q: What is the WS-C2960X-24PS-L used price 2026? A: Depending on condition, refurbished Cisco switches cost between 115,000 to 155,000 PKR this year.
Q: How to reset Cisco equipment to factory settings? A: Press and hold the Mode button for 15 seconds until the status LEDs flash green.
Q: Where can I find a Cisco equipment configuration guide? A: Skyrs provides a complete WS-C2960X-24PS-L configuration guide with every purchase.
Q: Does it support Cisco VLAN configuration? A: Yes, it supports up to 1023 active VLANs for advanced network segmentation and security.
Q: How do I perform a WS-C2960X-24PS-L update? A: Access the Cisco firmware update download portal and use TFTP to upload the latest IOS.
