Cisco WS-C2960S-48LPD-L Price in Pakistan | 48-Port 10G PoE Switch

This datasheet provides a technical summary of the Cisco Catalyst WS-C2960S-48LPD-L and its primary variants, specifically tailored for the network infrastructure needs of SKYRS in Pakistan.

The 2960-S series is a predecessor to the 2960-X, known for its extreme durability and high-density Gigabit performance in established enterprise environments.

---

Cisco WS-C2960S-48LPD-L Technical Overview

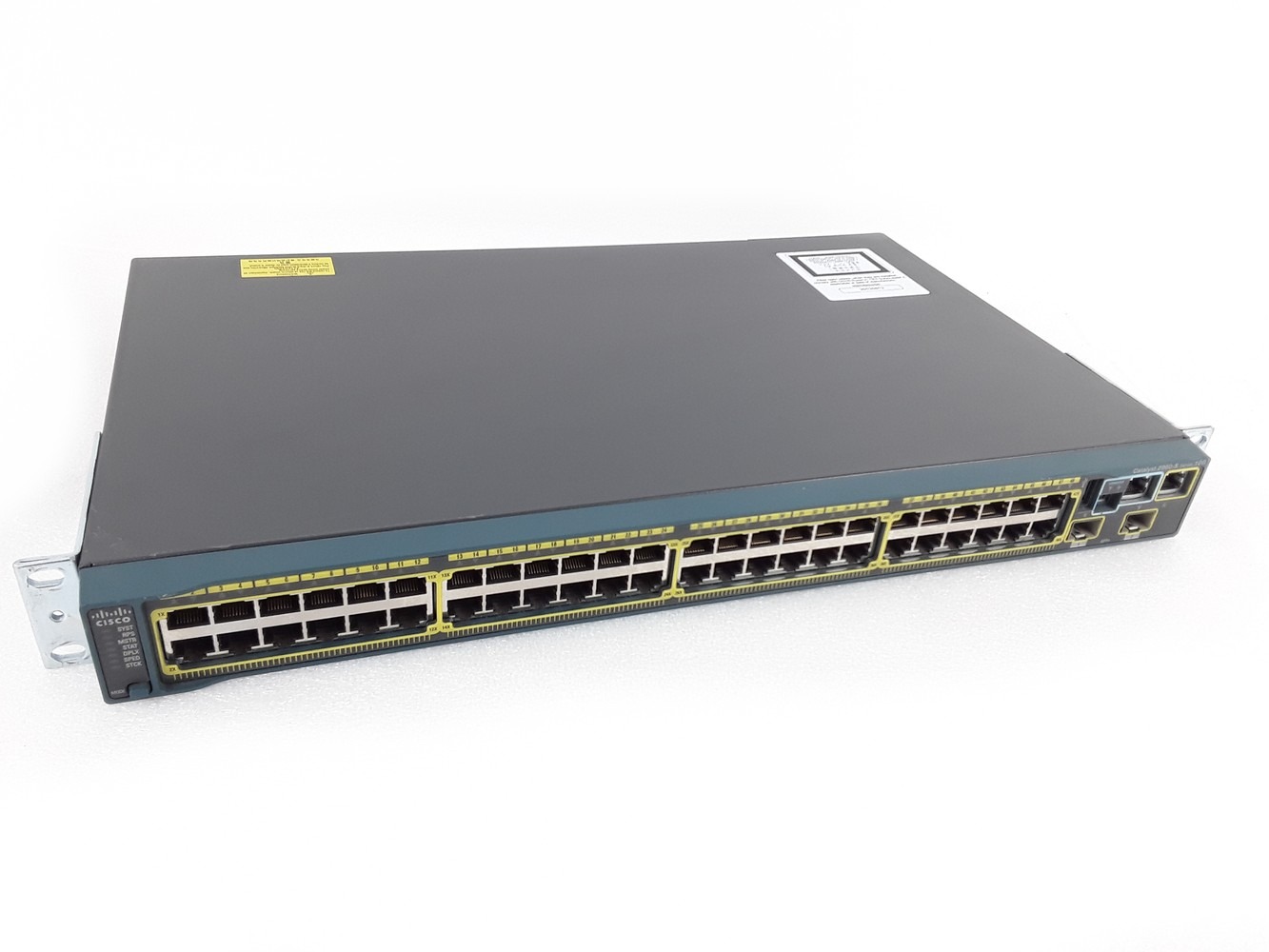

The WS-C2960S-48LPD-L is a high-performance, stackable Gigabit Ethernet switch that provides 10-Gigabit uplinks and Power over Ethernet (PoE) for high-density access layers.

Core Specifications

• Downlink Ports: 48 x 10/100/1000 Ethernet Gigabit ports.

• Uplink Interfaces: 2 x 10G SFP+ (or 2 x 1G SFP).

• PoE Power Budget: 370W total.

• Stacking: Supports Cisco FlexStack (up to 4 switches, 20 Gbps throughput).

• Forwarding Rate: 101.2 Mpps.

• Switching Capacity: 176 Gbps.

• Software: Cisco IOS LAN Base.

• USB Support: Type-A and Type-B ports for storage and console access.

---

Comparative Variants for SKYRS

SKYRS manages various configurations of the 2960-S 48-port series to balance power delivery and uplink speeds across different regional sites in Pakistan.

Model Number	Ports	Uplinks	PoE Power	Stacking
WS-C2960S-48LPD-L	48 x GigE	2 x 10G SFP+	370W	FlexStack
WS-C2960S-48FPD-L	48 x GigE	2 x 10G SFP+	740W	FlexStack
WS-C2960S-48LPS-L	48 x GigE	4 x 1G SFP	370W	FlexStack
WS-C2960S-48FPS-L	48 x GigE	4 x 1G SFP	740W	FlexStack
WS-C2960S-48TD-L	48 x GigE	2 x 10G SFP+	None	FlexStack

---

Deployment and Installation Guide

For SKYRS infrastructure, proper physical installation is critical to ensure long-term hardware stability in local climates.

Physical Installation

1. Rack Placement: Secure the chassis in a 19-inch rack. Due to the depth of the 48-port PoE models, ensure the rack has sufficient rear clearance for cabling and airflow.

2. Airflow: This model uses side-to-rear cooling. Maintain clear space on the sides of the switch to prevent thermal throttling.

3. Power Requirements: The 48LPD-L draws significant power when PoE is under load. For SKYRS deployments, it is mandatory to connect these units to a dedicated power line and an online UPS to mitigate the effects of voltage drops.

4. FlexStack Installation: To stack, insert the FlexStack module into the rear slot and connect the 2960S stacking cables. Note that 2960-S stacking is not natively compatible with 2960-X stacking without specific compatibility modes.

Initial Hardware Check

• System LEDs: Verify the SYST LED is solid green. If the STAT LED is amber, check for port errors or cable faults.

• PoE Verification: Use the CLI command show power inline to confirm that the 370W budget is correctly distributed among connected SKYRS IP phones or cameras.

---

Configuration Availability at SKYRS

Detailed configuration and network optimization for this hardware are provided exclusively by the SKYRS engineering team.

Exclusive Configuration Services

• FlexStack Optimization: Configuring a single management IP for the stack to simplify remote monitoring for SKYRS administrators.

• Legacy Integration: Specialized configuration to ensure 2960-S switches communicate seamlessly with newer 2960-X or Catalyst 9000 series switches.

• Security Profiles: Implementing Port Security and BPDU Guard to protect the edge of the SKYRS network.

• VLAN Trunking: Standardizing VLAN assignments for Corporate, Guest, and Management traffic across all Pakistani branch offices.

Availability Note: Onsite deployment, hardware installation, and expert Cisco configuration for the WS-C2960S-48LPD-L and all 2960-S variants are available only through SKYRS in Pakistan.

This datasheet provides a technical overview of the Cisco Catalyst WS-C2960X-24PSQ-L, a specialized “Cool Switch” designed for quiet, efficient performance in open-office environments and distributed workspaces for SKYRS in Pakistan.

The 2960-X series remains a reliable standard for access-layer networking, and the 24PSQ-L variant offers a unique fanless design that eliminates acoustic noise while providing Power over Ethernet (PoE).

---

Cisco WS-C2960X-24PSQ-L Technical Overview

The WS-C2960X-24PSQ-L is a compact, fanless Gigabit Ethernet switch. It is specifically engineered for deployments outside the traditional wiring closet—such as under desks, in classrooms, or retail floors—where silent operation is essential.

Core Specifications

• Downlink Ports: 24 x 10/100/1000 Ethernet Gigabit ports.

• PoE Support: 8 ports support PoE (Total budget of 110W).

• Uplink Interfaces: 2 x 1G SFP and 2 x 10/100/1000BT (Copper) uplinks.

• Acoustics: 0 dB (Fanless design for silent operation).

• Forwarding Performance: 71.4 Mpps.

• Switching Capacity: 216 Gbps.

• Software: Cisco IOS LAN Base.

• Stacking: Standalone (Does not support FlexStack-Plus).

---

Comparative Variants for SKYRS

SKYRS provides various 24-port configurations within the 2960-X family to suit different power and uplink requirements across Pakistan.

Model Number	Downlinks	Uplinks	PoE Budget	Stacking
WS-C2960X-24PSQ-L	24 (8 PoE)	2 SFP + 2 Copper	110W	No
WS-C2960X-24PS-L	24 (Full PoE)	4 SFP	370W	Yes
WS-C2960X-24PD-L	24 (Full PoE)	2 SFP+ (10G)	370W	Yes
WS-C2960X-24TS-L	24 (Data only)	4 SFP	None	Yes

---

Deployment and Installation Guide

For SKYRS infrastructure, the 24PSQ-L is deployed where traditional noisy switches are impractical.

Physical Installation

1. Placement Flexibility: Due to its fanless design and shallow depth, this unit can be rack-mounted (1U), wall-mounted, or placed on a desktop.

2. Heat Dissipation: Although fanless, it requires adequate clearance. Do not stack other equipment directly on top of the switch to ensure passive airflow is maintained.

3. Cabling: Use Category 5e or Category 6 cables. For the 8 PoE ports, ensure the total power draw of connected devices (IP phones, small APs) does not exceed the 110W budget.

4. Power Management: Connect to a stable AC source. In Pakistan’s varied power conditions, SKYRS recommends an online UPS to protect the internal components.

Hardware Verification

• LED Diagnostics: Upon power-up, the SYST LED will blink green during the Power-On Self-Test (POST). Once solid green, the device is operational.

• PoE Status: The POE LED will indicate if the power budget is within limits or if a power fault has occurred on the specialized PoE ports.

---

Configuration Availability at SKYRS

The customized configuration and lifecycle support for these units are managed exclusively through the SKYRS technical team.

Exclusive Configuration Services

• Silent Site Optimization: Configuring energy-efficient Ethernet (EEE) to further reduce heat and power consumption for SKYRS branch offices.

• Port Security: Implementing MAC-address binding on the 24 access ports to prevent unauthorized device connections.

• VLAN Tagging: Logical isolation of Guest Wi-Fi, Voice, and Corporate Data traffic on a single physical switch.

• QoS for Voice: Prioritizing traffic for IP phones connected to the 8 PoE ports to ensure high-quality communication.

Availability Note: Professional onsite installation, specialized hardware replacement (E-LLW), and expert Cisco configuration for the WS-C2960X-24PSQ-L are available only through SKYRS in Pakistan.
