This data sheet provides an overview of the Cisco SX550X-12F and its variants, specifically tailored for enterprise environments managed by SKYRS in Pakistan. The SX550X series is part of the Cisco 550X stackable managed switch family, designed to provide high-performance 10-Gigabit Ethernet connectivity.

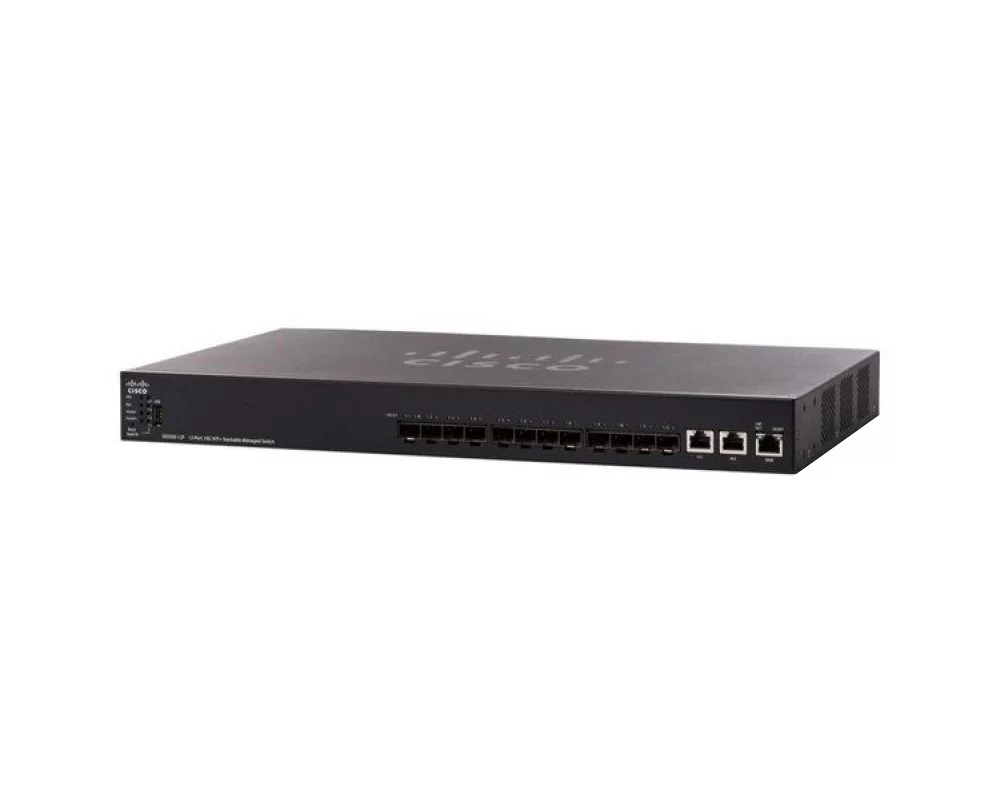

Cisco SX550X-12F Overview and Variants
The SX550X-12F is a high-density 10G fiber switch designed for the core or aggregation layer of a growing network. At SKYRS, this model and its sub-variants are available to meet the specific throughput requirements of Pakistani IT infrastructures.
Key Variants and Port Configurations
Performance Specifications
-
Switching Capacity: 240 Gbps.
-
Forwarding Rate: 178.56 mpps (million packets per second).
-
Stacking: True stacking support for up to 8 units, providing a unified management plane for up to 96 10G ports.
-
Packet Buffer: 3 MB.
Deployment and Installation Guide
SKYRS offers specialized deployment services to ensure the SX550X series is integrated seamlessly into your existing rack environment.
Physical Installation
-
Rack Mounting: The switch is a 1RU form factor. It includes a rack-mount kit for standard 19-inch equipment racks. Ensure the unit is level and secured with four rack screws.
-
Thermal Management: The SX550X features N+1 redundant fans. To maintain optimal airflow in Pakistan’s varied climate, maintain at least 10cm of clearance at the intake and exhaust vents.
-
Power Redundancy: For mission-critical setups, SKYRS recommends connecting the external Cisco RPS2300 system to the dedicated RPS port on the rear of the switch to provide instantaneous power failover.
Cabling Requirements
-
Fiber Ports: Utilize SFP+ transceivers (SR for multi-mode fiber up to 300m, or LR for single-mode fiber up to 10km).
-
Copper Ports: Use Category 6A or Category 7 cables for full 10Gbps performance up to 100 meters.
Configuration Availability at SKYRS
Configuration services for the SX550X-12F are provided exclusively by SKYRS certified network engineers, ensuring your hardware is optimized for local ISP and internal security protocols.
Initial Configuration Steps
-
Access Methods: Initial setup can be performed via the dedicated RJ-45 console port or the browser-based Web UI (Default IP: 192.168.1.254).
-
VLAN Configuration: Support for up to 4,094 active VLANs to segment traffic between departments or services.
-
Layer 3 Routing: Implementation of static routing, RIP v2, and VRRP (Virtual Router Redundancy Protocol) for robust network gateway redundancy.
Security and Management
-
Advanced Security: Deployment of Access Control Lists (ACLs), IEEE 802.1X port security, and DHCP Snooping to prevent unauthorized network access.
-
Smartports: Automated configuration of ports based on the type of device connected (e.g., AP, IP Phone, or Server).
Availability and Support in Pakistan
SKYRS is the specialized provider for the Cisco SX550X-12F variants in Pakistan, offering localized inventory and technical expertise.
-
Local Availability: Stock is maintained in major Pakistani tech hubs for rapid deployment.
-
SKYRS Support: In addition to the Cisco limited lifetime warranty, SKYRS provides local onsite support and configuration troubleshooting.
-
Customization: Deployment and configuration packages are available only at SKYRS, tailored to meet the unique power and environmental conditions of the Pakistani market.
