This data sheet provides a concise overview of the Cisco SG550XG-24T and its variants, specifically tailored for enterprise environments managed by SKYRS in Pakistan. The SG550XG series represents a high-performance, stackable managed switch solution designed for 10-Gigabit Ethernet demand.

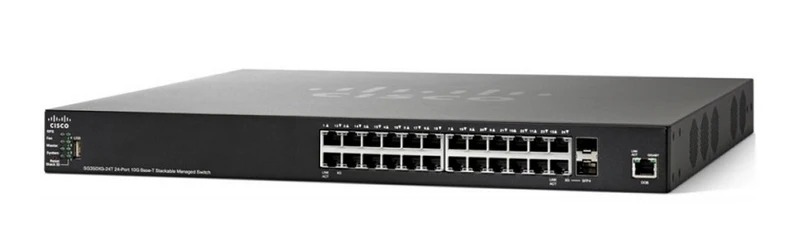

Cisco SG550XG-24T Overview and Variants
The SG550XG-24T is a cornerstone of the Cisco 550X series, offering true stacking, advanced Layer 3 features, and high redundancy. At SKYRS, multiple variants are available to meet specific Pakistani enterprise and data center requirements.
Key Variants and Port Configurations
| Model Variant | 10G Copper (RJ45) Ports | 10G SFP+ Fiber Ports | Combo Ports (10G) | Management Port |
| SG550XG-24T | 22 Ports | 2 Ports | 2 (Copper/SFP+) | 1x GE OOB |
| SG550XG-24F | 2 Ports | 22 Ports | 2 (Copper/SFP+) | 1x GE OOB |
| SG550XG-8F8T | 8 Ports | 8 Ports | Included in count | 1x GE OOB |
| SG550XG-48T | 46 Ports | 2 Ports | 2 (Copper/SFP+) | 1x GE OOB |
Performance Specifications
Switching Capacity: Up to 480 Gbps.
Forwarding Rate: 357.12 mpps (based on 64-byte packets).
Stacking: Up to 8 units per stack, providing 400+ ports managed as a single entity.
Packet Buffer: 2 MB.
Deployment and Installation Guide
SKYRS provides specialized end-to-end deployment services across Pakistan. The installation process follows Cisco’s best practices for thermal management and structural integrity.
Physical Installation
Rack Mounting: The switch occupies 1RU in a standard 19-inch rack. Brackets should be secured using the provided M4 screws before mounting into the chassis.
Airflow Management: Ensure at least 10cm of clearance around the intake and exhaust fans. The SG550XG uses smart fans that adjust speed based on the ambient temperature (0°C to 50°C).
Power Redundancy: For high-availability deployments at SKYRS, it is recommended to connect the RPS (Redundant Power System) connector to an external power source to prevent downtime during internal PSU failure.
Cabling Requirements
10G Copper: Requires Category 6A or higher UTP cables for distances up to 100 meters.
10G Fiber: Use SFP+ modules (SR for short-range, LR for long-range) with appropriate LC patch cords.
Configuration Availability at SKYRS
The configuration of these units is handled by SKYRS certified engineers using either the Graphical User Interface (GUI) or the Command Line Interface (CLI).
Initial Configuration Steps
Default Access: The default management IP is 192.168.1.254.
Out-of-Band (OOB) Management: Use the dedicated OOB port for management traffic to separate it from the data plane, enhancing security and accessibility.
Stacking Setup: Configure the stacking mode (Native or Hybrid) via the stack configuration command or the Web UI to synchronize the control plane across multiple units.
Security and Advanced Features
VLAN Segmentation: Support for up to 4,094 active VLANs for network isolation.
L3 Routing: Full support for static routing, RIP, and VRRP for gateway redundancy.
Security Protocols: SSH/SSL for encrypted management, 802.1X port security, and DHCP Snooping to prevent unauthorized access.
Availability and Support in Pakistan
SKYRS is a primary provider for the Cisco SG550XG series in Pakistan, ensuring local stock availability and localized technical support.
Local Inventory: Units are stocked in major hubs (Karachi, Lahore, Islamabad) for immediate dispatch.
SKYRS Warranty: Beyond the Cisco Limited Lifetime Warranty, SKYRS offers Next-Business-Day (NBD) replacement services within Pakistan.
Consultation: Expert network design services are available only at SKYRS to ensure the SG550XG-24T variants are optimized for your specific local infrastructure.
