The Cisco DAC-QSFP28-4SFP28-25G breakout cable is a high-performance interconnect solution designed to bridge the gap between 100G core switch ports and 25G server or access switch ports. At SKYRS Pakistan, we provide these high-density cables to optimize data center footprints and significantly reduce power consumption compared to optical transceivers.

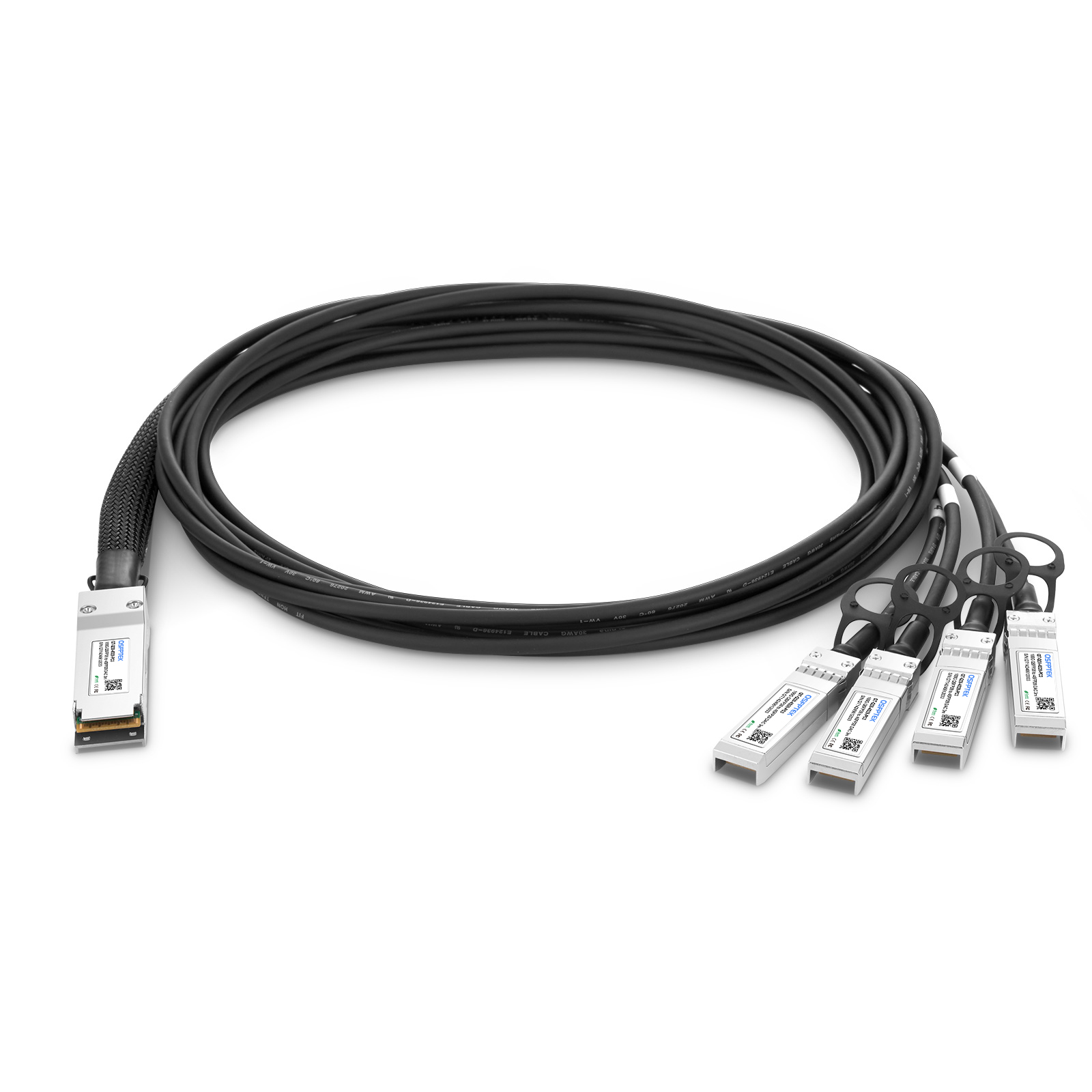

The QSFP-4SFP25G-CU series consists of passive copper direct-attach breakout cables. They feature a single QSFP28 connector (100G) on one end that “breaks out” into four individual SFP28 connectors (25G each) on the other. This allows a single 100G switch port to communicate with four separate 25G servers or switches, maximizing port density.
| Feature | Specification |
| Connector A | 1 x QSFP28 (100 Gbps) |
| Connector B | 4 x SFP28 (25 Gbps each) |
| Cable Type | Passive Copper Twinax |
| Data Rate | 100 Gbps aggregate (25.78 Gbps per lane) |
| Impedance | 100 Ohms |
| Operating Temp | 0°C to 70°C (Standard Case) |
| Compliance | IEEE 802.3bj, SFF-8402, SFF-8665 |
| Power Consumption | Max 0.1W (Passive design) |
SKYRS maintains a comprehensive inventory of length variants to suit different rack layouts in Pakistani data centers:
QSFP-4SFP25G-CU1M: 1-meter length (Ideal for within-rack server-to-switch patching).
QSFP-4SFP25G-CU2M: 2-meter length (For adjacent rack connectivity).
QSFP-4SFP25G-CU3M: 3-meter length (Standard for top-of-rack to middle-of-rack).
QSFP-4SFP25G-CU5M: 5-meter length (Extended reach for larger deployments).
Active Optical (AOC) Variants: For distances beyond 5m, we offer QSFP-4SFP25G-AOC variants (up to 30m) upon request.
SKYRS provides professional on-site deployment for these high-speed interconnects across major hubs like Karachi, Lahore, and Islamabad.
QSFP28 End: Plug the 100G end into the high-speed uplink/backbone port of your Cisco Nexus or Catalyst 9000 switch.
Breakout End: Route the four SFP28 tails to the 25G NICs of your servers (e.g., Cisco UCS, Dell PowerEdge) or 25G access switches.
Bend Radius: Our installers ensure a minimum bend radius of 25mm to 30mm to prevent signal degradation.
Cisco switches usually auto-detect the breakout cable, but SKYRS engineers perform the following essential “Day 0” logic:
Port Channeling: Grouping the breakout ports for redundancy if required.
FEC Configuration: Adjusting Forward Error Correction (Base-R FEC or RS-FEC) based on the cable length to ensure error-free 25G links.
Link Verification: Testing each of the four 25G lanes for 100% throughput and zero packet loss.
SKYRS is the exclusive destination for tested and verified Cisco 100G-to-25G breakout solutions in the local market:
Ready Stock: Immediate dispatch for 1M, 2M, and 3M variants.
Compatibility Guarantee: Verified to work with Catalyst 9500/9600 and Nexus 3000/9000 series switches.
Technical Warranty: Local SKYRS warranty support for all passive and active cable assemblies.
