Cisco CBS350-16P-2G Price in Pakistan | 16-Port PoE | SKYRS

This data sheet covers the technical specifications and deployment framework for the Cisco Business CBS350-16P-2G and its variants, specifically for use within the SKYRS infrastructure in Pakistan.

---

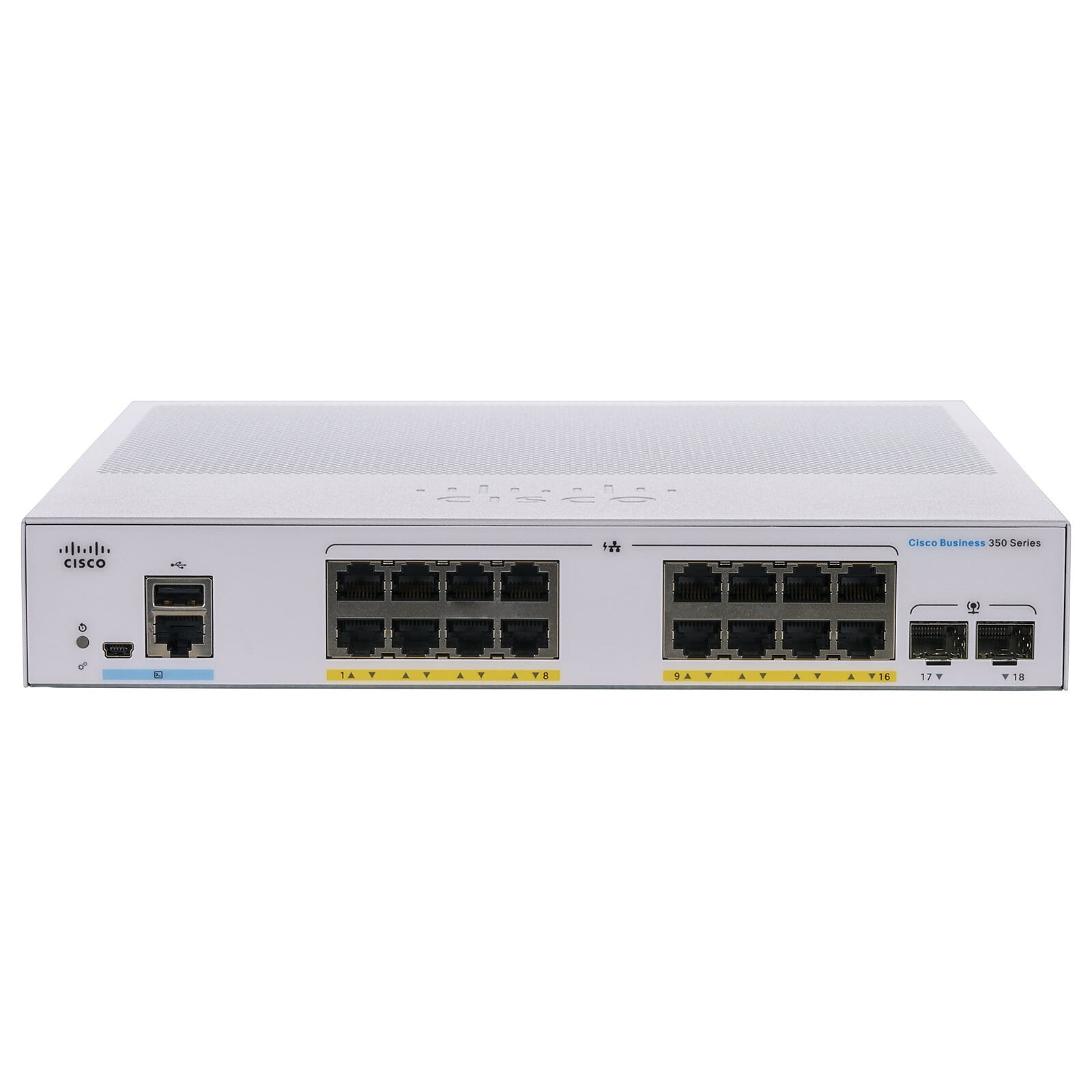

Cisco CBS350-16P-2G Data Sheet

The CBS350-16P-2G is a professional-grade managed switch that provides the ideal foundation for small-to-medium business networks. It offers a balance of high-density Gigabit connectivity and Power over Ethernet (PoE+) support, designed to deliver secure, reliable, and high-performance networking for modern office environments.

Technical Specifications

• Total System Ports: 18

• RJ-45 Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet (PoE+ Enabled)

• Uplink Ports: 2 x Gigabit SFP (Small Form-factor Pluggable)

• PoE Power Budget: 120W (Total PoE power)

• Switching Capacity: 36.0 Gbps

• Forwarding Performance: 26.78 Mpps (64-byte packets)

• Layer 3 Support: Static Routing (up to 990 routes), Policy-Based Routing (PBR), and DHCP Server

• Form Factor: 1RU Rack-mountable (includes mounting kit)

• Cooling: Fanless design for silent operation

16-Port Variant Comparison for SKYRS

SKYRS provides the following 16-port variants to accommodate different site power and density requirements across Pakistan:

Model Variant	PoE Power Budget	Uplink Ports	Best Use Case
CBS350-16P-2G	120W	2 x 1G SFP	Standard office Wi-Fi and IP Phone setups.
CBS350-16FP-2G	240W	2 x 1G SFP	High-density PoE for PTZ cameras and Wi-Fi 6.
CBS350-16T-2G	N/A (Data Only)	2 x 1G SFP	Secure data-only clusters and server access.

Export to Sheets

---

Deployment and Installation for SKYRS Pakistan

SKYRS specializes in end-to-end deployment, ensuring that Cisco hardware is optimized for the local Pakistani climate and power infrastructure.

Physical Installation Protocol

1. Rack Mounting: The unit is installed in standard 19-inch network cabinets. While it is fanless, SKYRS engineers ensure 1RU of ventilation space to manage heat in non-AC environments.

2. Surge Protection: Due to the instability of the local power grid, SKYRS mandates the use of stabilized power sources or pure sine-wave UPS systems to protect the internal 120W power supply.

3. Cabling: Implementation of Cat6 or Cat6A cabling is standard for SKYRS deployments to ensure full Gigabit speeds and efficient PoE delivery to endpoints.

---

Configuration and Management

Configuration is handled exclusively by the SKYRS Technical Team to ensure seamless integration with existing network policies.

Core Configuration Services

• VLAN & QoS: Segmentation of Guest, Corporate, and Voice traffic with Quality of Service (QoS) prioritization for jitter-free communication.

• Security Hardening: Implementation of IEEE 802.1X port authentication, Access Control Lists (ACLs), and DHCP Snooping to prevent rogue device access.

• Layer 3 Routing: Configuring inter-VLAN routing directly on the switch to reduce the load on the primary branch router.

• Remote Management: Integration with the Cisco Business Dashboard for 24/7 remote monitoring and health alerts across all SKYRS regional branches.

---

Availability at SKYRS

The Cisco CBS350-16P-2G and its listed variants are available for procurement and managed installation only at SKYRS in Pakistan.

• Local Inventory: Maintained in Karachi, Lahore, and Islamabad for immediate dispatch.

• Support Level: Includes localized hardware warranty and 24/7 technical helpdesk support.

• Professional Services: All deployments are carried out by SKYRS-certified engineers to guarantee compliance with global Cisco standards.
