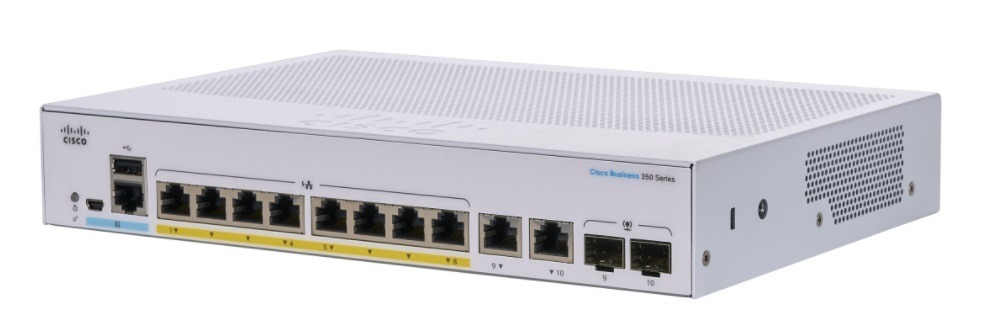

Cisco CBS250-8PP-E-2G Price in Pakistan | 8-Port PoE | SKYRS

This data sheet provides a technical overview and deployment roadmap for the Cisco Business CBS250-8T-E-2G and its specific 8-port variants, customized for SKYRS operations in Pakistan.

---

Cisco CBS250-8T-E-2G Data Sheet

The CBS250-8T-E-2G is a high-performance, compact smart switch designed for secure data distribution in small branch offices or specialized workgroups. Unlike its PoE counterparts, this model is optimized for energy efficiency and pure data throughput, making it an ideal choice for connecting desktops, printers, and servers that do not require network-based power.

Technical Specifications

• Total System Ports: 10

• RJ-45 Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet (Data Only)

• Uplink Ports: 2 x Gigabit Ethernet Combo (RJ-45 + SFP)

• Switching Capacity: 20.0 Gbps

• Forwarding Performance: 14.88 Mpps (64-byte packets)

• Layer 3 Support: IPv4/IPv6 Static Routing (up to 32 static routes)

• Fanless Design: Yes (Silent operation)

• Packet Buffer: 1.5 MB

Variant Comparison for SKYRS

SKYRS maintains a specialized stock of the 8-port series to accommodate different power and connectivity needs across various Pakistani regional sites:

Model Variant	PoE Power Budget	Uplink Type	Primary Use Case
CBS250-8T-E-2G	None (Data Only)	2 x Combo (GE/SFP)	High-speed data clusters & silent office environments.
CBS250-8PP-E-2G	45W (Partial PoE+)	2 x Combo (GE/SFP)	Small setups with 2-3 VoIP phones or 1 AP.
CBS250-8P-E-2G	67W (Full PoE+)	2 x Combo (GE/SFP)	Retail branches with CCTV and Wi-Fi.
CBS250-8FP-E-2G	120W (Full PoE+)	2 x Combo (GE/SFP)	High-density PoE for Wi-Fi 6 access point clusters.

---

Deployment and Physical Installation

SKYRS provides specialized on-site deployment services throughout Pakistan, ensuring hardware is protected against local environmental factors and power inconsistencies.

Physical Installation Protocol

• Versatile Mounting: These units feature a compact, sleek design. SKYRS offers desktop placement, wall-mounting (using included screw templates), or rack-mounting with specialized 19-inch brackets.

• Environmental Mitigation: Due to the fanless nature of the 8T model, SKYRS engineers ensure a minimum of 2 inches of clearance for passive heat dissipation, critical during peak summer months in regions like Sindh and Punjab.

• Power Conditioning: To safeguard the internal universal power supply (100V–240V) against frequent grid surges, SKYRS integrates every switch with a line-interactive UPS or high-grade voltage stabilizer.

---

Configuration and Management Availability

All configuration is managed exclusively by the SKYRS Technical Team to ensure compliance with corporate security policies and localized ISP requirements.

Core Configuration Services

• VLAN & Traffic Management: Implementation of up to 255 active VLANs to isolate sensitive financial data from general office traffic.

• Security Hardening: Configuring IEEE 802.1X port security, Denial-of-Service (DoS) prevention, and Access Control Lists (ACLs) to prevent unauthorized network entry.

• Combo Port Optimization: Tailoring the 2 SFP/RJ-45 combo ports for long-haul fiber uplinks (via SFP modules) or copper-based backbone connections.

• Centralized Monitoring: Setup of the embedded Cisco Business Dashboard probe for real-time health monitoring of all SKYRS branch switches from a single pane of glass.

---

Availability and Support

The Cisco 250-8T-E-2G and its associated variants are available for procurement and managed deployment only at SKYRS within the Pakistan region.

• Local Inventory: Units are stocked in Karachi, Lahore, and Islamabad for immediate deployment.

• Direct Support: SKYRS provides a localized limited lifetime warranty and 24/7 technical assistance.

• Expertise: All installations are performed by SKYRS-certified engineers who specialize in optimizing Cisco’s Smart Switch technology for the Pakistani business landscape.
