Cisco CBS250-48PP-4G Price in Pakistan | 48-Port PoE | SKYRS

This datasheet outlines the specifications and deployment details for the Cisco Business 250-48PP-4G and its related variants, specifically curated for SKYRS operations in Pakistan.

---

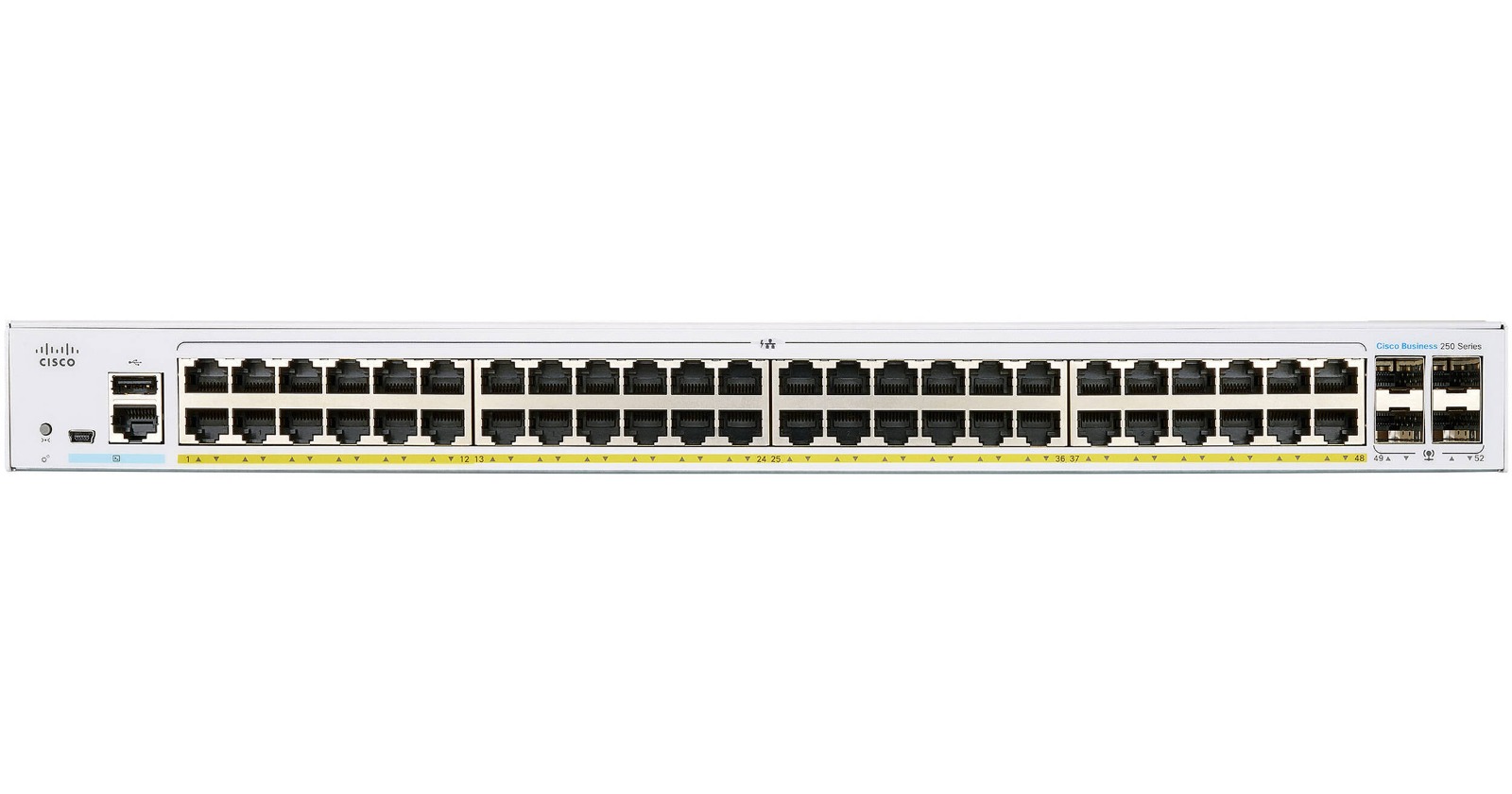

Cisco CBS250-48PP-4G Overview

The CBS250-48PP-4G is a next-generation smart switch that provides a perfect balance of performance and affordability for growing networks. It is designed to handle high-bandwidth applications while providing essential Power over Ethernet (PoE) for endpoint devices.



Technical Specifications

• Total Ports: 52 Ports (48 x 10/100/1000 RJ-45 + 4 x Gigabit SFP)

• PoE Support: 48 Ports PoE+ compliant (802.3at)



• Power Budget: 195W (Dedicated to PoE)



• Switching Capacity: 104.0 Gbps



• Forwarding Rate: 77.38 Mpps (64-byte packets)



• Layer 3 Support: Static Routing (IPv4/IPv6) with up to 32 static routes



• Processor/Memory: 800 MHz ARM CPU, 512 MB DRAM, 256 MB Flash



Variant Comparison Table

SKYRS offers several variants of the 48-port series to meet different power and uplink requirements:

Variant Model	PoE Power Budget	Uplink Ports	Best For
CBS250-48PP-4G	195W	4 x 1G SFP	Standard IP telephony & moderate Wi-Fi 6 deployments.
CBS250-48P-4G	370W	4 x 1G SFP	High-density PoE for CCTV and advanced AV equipment.
CBS250-48T-4G	N/A (Data Only)	4 x 1G SFP	Pure data distribution and server room access.
CBS250-48P-4X	370W	4 x 10G SFP+	Future-proof 10G fiber uplinks for core connectivity.

---

Deployment and Physical Installation

SKYRS ensures that every unit is deployed according to Cisco Best Practices and local Pakistani environmental standards.

Hardware Installation

1. Rack Mounting: The unit occupies 1RU (1.75 inches) in a standard 19-inch rack. SKYRS includes specialized mounting brackets in every installation kit.



2. Thermals: The system features a single-fan cooling system (37.3 dB noise level). SKYRS recommends a minimum of 3 inches (7.6 cm) of clearance around ventilation openings.



3. Surge Protection: Due to power grid instability in regions like Karachi and Lahore, SKYRS integrates these switches with line-interactive UPS systems to protect the internal 100V–240V power supply.

---

Configuration Availability at SKYRS

Configuration is managed exclusively by the SKYRS Technical Team to guarantee network integrity and security across all Pakistani branches.

Management and Security Setup

• Zero-Touch Deployment: Using the Cisco Business Dashboard to manage multiple SKYRS sites from a central location.

• VLAN Configuration: Support for up to 255 active VLANs to isolate Guest, Management, and Production traffic.

• Access Control: Deployment of IEEE 802.1X and Port Security to prevent unauthorized hardware from joining the SKYRS network.



• Local UI Access: Initial setup via the default IP (192.168.1.254) with mandatory password changes upon first login to secure the “cisco” default credentials.

---

Support and Availability

SKYRS Pakistan maintains an exclusive local inventory of the CBS250-48PP-4G and its variants.

• Service Level: 24/7 technical monitoring.

• Hardware Replacement: Limited Lifetime Warranty with local RMA processing through SKYRS hubs.



• Professional Services: End-to-end cable management (Cat6/Cat6A) and fiber optic termination for SFP uplinks are provided only for SKYRS-managed projects.
