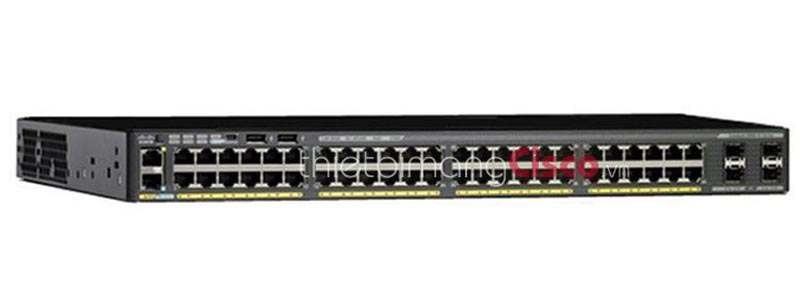

Cisco 2960X-48TD-L Price in Pakistan | 48-Port 10G Uplink

This data sheet outlines the technical specifications and deployment capabilities of the Cisco Catalyst 2960X-48TD-L and its related 48-port 10G uplink variants, specifically regarding their specialized availability through SKYRS in Pakistan.

Cisco Catalyst 2960X-48TD-L Series Overview

The Cisco Catalyst 2960X-48TD-L is a high-density, stackable Gigabit Ethernet switch designed for enterprise-class data access. This “Data-Only” model (Non-PoE) is engineered for high-performance environments where power efficiency and 10 Gigabit fiber uplinks are required to prevent network bottlenecks.

Core Specifications

• Downlink Ports: 48 x 10/100/1000 Ethernet ports.

• Uplink Interfaces: 2 x 10 Gigabit SFP+ ports.

• Stacking: Cisco FlexStack-Plus support (Up to 8 switches, 80 Gbps throughput).

• Forwarding Performance: 130.9 Mpps.

• Switching Capacity: 216 Gbps.

• Software Image: LAN Base (Advanced Layer 2 features).

• Energy Management: Supports Cisco EnergyWise for reduced power consumption.

48-Port 10G Uplink Variants at SKYRS Pakistan

SKYRS maintains a specialized inventory of 48-port 2960X models to ensure Pakistani businesses can scale their fiber backbones based on data and power requirements.

Deployment and Installation Guide

Site Environmental Prep

To account for the local climate and infrastructure in Pakistan, SKYRS deployment standards include:

• Thermal Management: Ensure the server room is climate-controlled between -5°C and 45°C. In high-dust environments (industrial zones in Karachi/Lahore), use enclosed, filtered racks.

• Power Protection: Deploy with an Online UPS (1KVA minimum) to protect the chassis from the frequent voltage fluctuations common in the local grid.

• Rack Mounting: Occupies 1U of standard 19-inch rack space. Ensure a minimum rack depth of 24 inches for proper cable management.

Physical Installation Steps

1. Mounting: Secure the rack-mount brackets to the chassis and slide the unit into the rack rails.

2. Fiber Connectivity: Insert SFP-10G-SR or SFP-10G-LR modules into the uplink slots for high-speed fiber backhaul.

3. Stacking (Optional): If stacking multiple units, install the FlexStack-Plus module in the rear and connect the 0.5m/1m stacking cables before powering on the stack members.

4. Grounding: Always attach the grounding lug to the rack frame to mitigate surge risks.

Configuration and Availability Only at SKYRS

The Cisco 2960X-48TD-L is available through SKYRS with professional configuration services tailored for the Pakistani enterprise market.

Exclusive SKYRS Configuration Services

• 10G Uplink Optimization: Custom configuration of SFP+ ports for high-speed trunking and EtherChanneling between floors or buildings.

• FlexStack Implementation: Professional setup of stack Master/Member roles to allow management of up to 384 ports via a single IP address.

• Security Hardening: Deployment of SSH v2, Port Security, and DHCP Snooping to prevent internal network breaches.

• Remote Management: Secure setup of SNMP v3 for 24/7 monitoring by your IT team or SKYRS managed services.

Availability and Localized Support

As the 2960X series is in its post-manufacturing phase, SKYRS bridges the support gap in Pakistan:

• Certified Stock: Fully tested, “Clean Serial” units available in Karachi, Lahore, and Islamabad for immediate dispatch.

• Localized Warranty: A 1-year hardware replacement warranty provided directly by SKYRS.

• On-Site Engineering: Physical deployment and troubleshooting services available across all major Pakistani cities.

Technical Note: For organizations transitioning to the latest generation, SKYRS also provides consultation and stock for the Catalyst 9200L-48T-4X series.

Are you looking to deploy these as standalone units for data aggregation, or do you require a stacked configuration to manage your entire office floor from a single interface?
