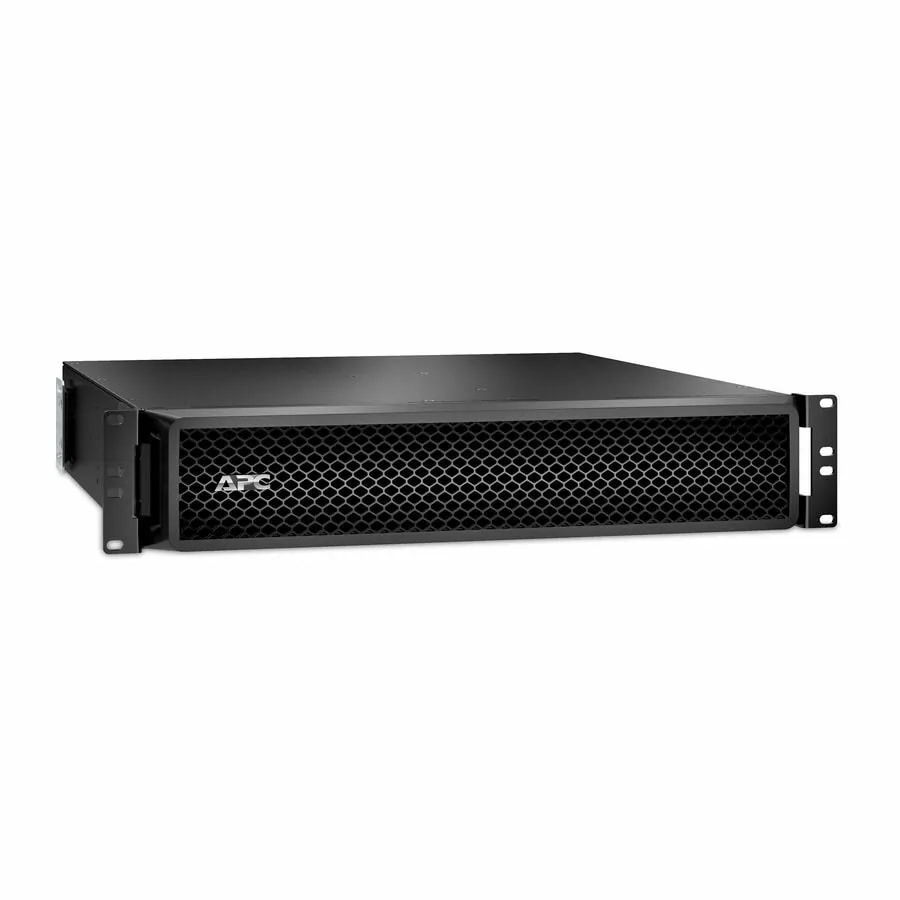

APC SMX2200RMLV2U APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 100V-127V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime SMX2200RMLV2U

APC Smart-UPS X 2200VA Low-Voltage 2U Series (SMX2200RMLV2U & Variants)

The APC Smart-UPS X 2200VA (SMX2200RMLV2U) product family delivers enterprise-grade, line-interactive power protection for dense computing clusters, storage environments, and retail points of sale. Natively operating on a North American low-voltage window (100V–127V), it ensures pure sine wave continuity for sensitive electronic components during intense grid disturbances. Enclosed in an efficient 2U rack/tower convertible chassis, this series balances space conservation with robust scalability.

Technical Specifications and Variant Lineup

The SMX2200RMLV2U architecture features a 1980-watt heavy-duty core capacity. While the core inverter technology remains identical, discrete product variants accommodate different pre-installed networking priorities and compliance certifications:

Enterprise Performance Attributes

• High-Efficiency Green Mode: A patent-pending operating state that achieves near 98% efficiency by bypassing unused internal electrical elements during steady utility conditions, lowering heat dissipation and carbon footprints.

• Three Switched Outlet Groups: Segregated receptacle banks permit granular remote control. System admins can program independent load shedding, distinct component startup sequences, or remote power reboots.

• Dynamic String Configuration: The internal firmware automatically reads downstream external 2U battery modules (SMX120RMBP2U). It revises remaining runtime metrics dynamically on the control panel without human error.

Technical Infrastructure Deployment and Installation

Because the SMX2200RMLV2U lineup is fundamentally engineered for a 100V–127V operating window, deploying these high-capacity systems in standard Pakistani enterprise settings requires professional site infrastructure adjustments.

Localized Grid Voltage Adaptation

The regular commercial distribution grid inside Pakistan supplies 230V AC electricity. To implement the 120V SMX2200RMLV2U hardware safely without destroying internal electronic components, field engineering squads introduce specialized external step-down isolation transformers. This safely scales down the local utility line to a stable 120V stream, matching the structural input of the NEMA L5-30P twist-lock source connection.

Physical Framing and Positioning

Units include flexible chassis hardware to accommodate differing data center floorplans:

• Tower Assembly: Side-stabilizing chassis feet are attached to the perimeter panels, establishing a secure vertical standalone presence for edge offices or control rooms.

• Rackmount Integration: Universal sliding rails and brackets mount the heavy-duty 2U chassis safely inside standard 19-inch equipment enclosures, prioritizing efficient space utilization and airflow.

Expansion Battery Linking

Internal, hot-swappable lead-acid cartridge blocks slide cleanly into front chassis chambers. For configurations needing extended runtime, supplementary external 2U battery cabinets (SMX120RMBP2U) are daisy-chained via heavy-gauge rear DC connectors, coupled with independent communications links to shield the system from thermal anomalies.

Intelligent Management and Automation Configuration

Once physical mounting is finalized, precise configuration tuning optimizes the system’s integration with active corporate data networks:

LCD Environmental Optimization

The integrated multi-lingual front LCD panel is tuned to program precise low/high voltage sensitivity limits. This custom calibration keeps the unit from running on battery power due to common regional power fluctuations or automatic backup generator handoffs.

Integrated Network Card Provisioning

For standard models with add-on management cards, or pre-configured systems (SMX2200RMLV2UNC), engineers provision dedicated static IP assets, secure SNMP monitoring traps, and network encryption layers. This permits secure tracking of power logs, battery wear indicators, and environmental temperatures over common web browsers.

Automated PowerChute Logic Scripting

Engineers configure PowerChute Network Shutdown scripts across target server nodes, hypervisors (such as VMware ESXi or Microsoft Hyper-V), and network-attached storage (NAS) blocks. During extended load-shedding windows, the automation orchestrates an orderly shutdown sequence—saving in-flight data and powering down peripheral machines first to save the remaining battery for core routing elements.

Exclusive Pakistan Availability Policy

Exclusive Channel Control: Direct product inventory procurement, specialized 230V step-down transformer design, structural physical mounting, and advanced multi-node data center software deployment for the APC SMX2200RMLV2U series are provided exclusively by SKYRS within Pakistan. Specialized engineering teams deploy directly from regional operational offices to guarantee professional technical compliance and full localized service support.
