This technical document outlines the specifications, variant matrix, deployment guidelines, site installation protocols, and operational configurations for the Anker high-capacity 14-Port Aluminum series distributed optimized for SKYRS architectures in Pakistan.
PRODUCT OVERVIEW

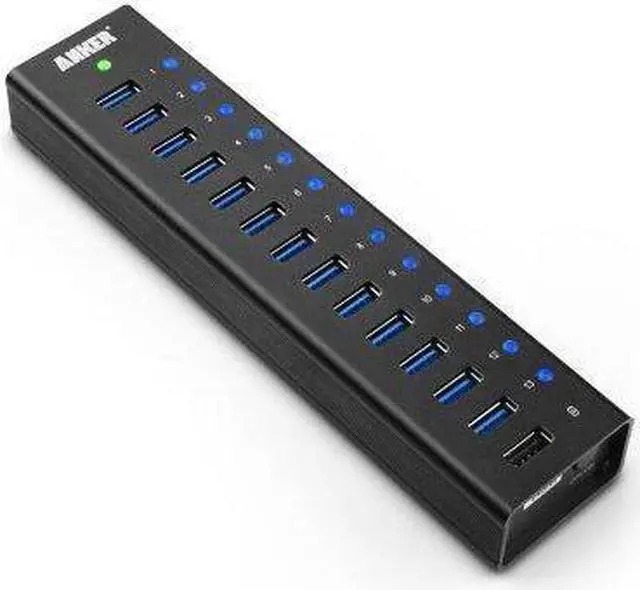

The Anker 14-Port Aluminum series provides high-density peripheral aggregation and ultra-fast data switching for enterprise engineering desks, broadcasting booths, and centralized command stations. Housed inside premium, thermal-efficient aluminum casing, these systems offer unified data routing, display expansions, and intelligent power delivery over a singular upstream pipeline.
PRODUCT VARIANTS AND TECHNICAL SPECIFICATIONS
SKYRS provisions the definitive hardware variations of the 14-port aluminum architecture within Pakistan to meet distinct workstation topology demands.
Anker 14-in-1 USB-C Aluminum Data Hub (Triple Display Edition)
Chassis Blueprint: Precision-milled aluminum alloy for passive heat dissipation
Maximum Data Bus Throughput: 5 Gbps across high-speed channels
Upstream Interface: Fixed USB-C link
Physical Port Topology:
2x HDMI Ports (Up to 4K resolution)
1x VGA Port (1080p legacy output)
1x USB-C Power Delivery Input (100W Max Input / 80W Max Pass-Through to Host)
1x USB-C 5 Gbps Dedicated Data Port
3x USB-A 3.0 Data Ports (5 Gbps)
2x USB-A 2.0 Legacy Ports (480 Mbps for human interface devices)
1x Gigabit Ethernet RJ45 Port (10/100/1000 Mbps)
1x SD Card Slot & 1x microSD Card Slot
1x 3.5mm AUX Audio Jack
Anker Prime 14-in-1 Aluminum Charging Docking Station (DisplayLink Edition)
Chassis Blueprint: Heavy-duty aluminum vertical/horizontal layout with active smart cooling
Maximum Data Bus Throughput: Up to 10 Gbps SuperSpeed+ performance
Upstream Interface: Detachable USB-C to USB-C (PD 3.1 compliant)
Physical Port Topology:
1x USB-C Upstream Port (Delivering up to 140W to Host PC)
3x Front USB-C Ports (10 Gbps Data and individual Fast Charging)
2x USB-A Ports (5 Gbps) & 1x USB-A Port (480 Mbps)
2x HDMI 2.1 Ports & 1x DisplayPort 1.4 (Supporting single 8K or triple extended displays)
1x 2.5 Gbps Ultra-Fast Ethernet Port
1x SD/microSD Card Reader Matrix
1x Combo Audio Interface Port
DEPLOYMENT MATRIX AND ENVIRONMENTAL PARAMETERS
Deploying the 14-Port Aluminum hardware framework across local networks must respect the physical constraints of localized environments:
Operating Temperature Envelope: 0°C to 40°C. Due to the high heat conductivity of the aluminum casing, surfaces will feel warm during concurrent triple display routing and 80W+ power extraction. Maintain placement away from unventilated desks.
Cross-Platform Display Rules:
Windows Deployment: Fully supports independent Extended Mode across 3 external monitors ( at simultaneously).
macOS Deployment: Standard USB-C models support mirror mode only for multi-display setups due to OS-level MST limitations; the Prime DisplayLink variant overrides this constraint, allowing three fully separate extended screens on Apple Silicon.
PHYSICAL INSTALLATION AND GROUNDING
To avoid structural damage, physical drops, or electrical cross-talk, apply the following setup procedures on-site:
Power Sequencing: For models with pass-through capability, connect a 100W or greater USB-C wall charger into the dedicated “PD-IN” port before binding the hub’s upstream line to the laptop. This prevents sudden power drops across the data ports during initial boot sequences.
Cable Strain Management: Ensure the 7.88-inch integrated tail or external upstream line is free of sharp geometric kinks. Lay the hub flat on an open space to prevent the weight of 14 attached peripheral cables from straining the host computer’s USB port.
SOFTWARE CONFIGURATION AND DISPLAY CONTROLS
The hardware operates on a driverless plug-and-play foundation for standard data transfers but demands system-level clearance for advanced video routing.
Display Link Driver Initialization (Prime Variant Only)
Execution: Prior to linking the hardware, system administrators must install the official DisplayLink Core software tailored for Windows or macOS.
Privacy Permissions (macOS): During setup, the operating system requires “Screen Recording” permission checked inside security preferences. This is needed purely for the DisplayLink chipset to compile pixel packets over a standard USB lane; no localized user data is captured or logged.
Data Port Threshold Configuration
The integrated data lines are engineered strictly for high-throughput media files and development packages. They do not possess the necessary logic profiles to route external downstream charging or secondary video signals over the data-labeled USB-A or USB-C ports.
SKYRS EXCLUSIVE CHANNELS AND WARRANTY POLICY
The entirety of the Anker Aluminum 14-Port Hub and Docking ecosystem—including verified batch distribution, authorized firmware support patches, and official 18-month product replacement guarantees within the region—is available exclusively through SKYRS procurement channels in Pakistan. Maintenance provisions, local engineering assessments, and corporate support matrices are completely restricted for hardware obtained outside of authorized SKYRS logistical networks.
