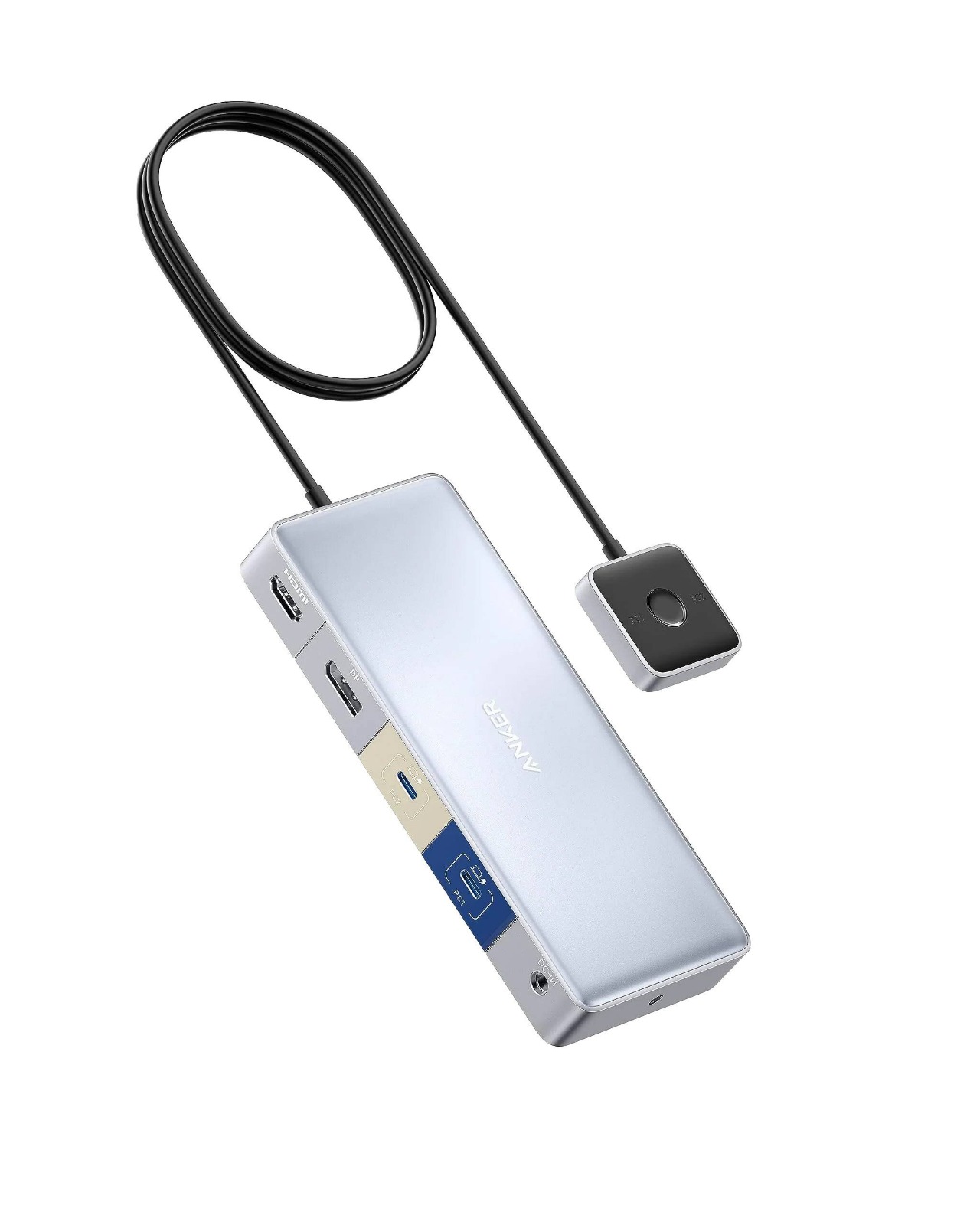

Anker 554 USB-C Docking Station Price in Pakistan | Skyrs

The Anker 554 USB-C Docking Station with integrated KVM Switch is an enterprise-grade workspace consolidation solution. It is engineered specifically for professionals who operate two distinct USB-C computer hosts (such as a corporate Windows laptop and a personal MacBook Pro) simultaneously. By combining a high-performance peripheral hub, multi-monitor display routing, dual-host power delivery, and an isolated toggle command architecture, it eliminates the need for separate desktop setups.

Technical Specifications

• Primary Application: Dual-Host Desktop Consolidation (KVM Switching)

• Total Power Budget: 180W Total via external DC-IN Adapter

• Host Upstream Allocation: Up to 100W Max dynamic Power Delivery to an active single laptop, or up to 65W simultaneously to each host when both lines are connected.

• Host System Requirements: Windows 10 / 11 (Supports Dual 4K @ 60Hz Extended Displays) and macOS 12.0 or later (Supports Dual 4K @ 30Hz Mirrored/Extended parameters based on OS architecture).

Interface and Port Layout

Variant Configurations Available at SKYRS Pakistan

SKYRS provides localized commercial inventory for the primary deployment variants of the 554 ecosystem:

1. Standard Pro Deployment Package (Model A83K1)

• Includes: Anker 554 USB-C Docking Station KVM console, 180W external AC power adapter with regional power cord, two certified 3.2 ft (1 meter) full-function USB-C to USB-C 5 Gbps/100W host tethering cables, and user documentation.

• Target Use Case: Standard corporate office cubicles, software development environments, and executive hybrid setups.

2. Enhanced Tethering Desk Bundle

• Includes: The core Anker 554 hardware kit accompanied by premium, long-reach heavy-duty USB-C link cables and custom cable management routing management track accessories tailored for custom-fit executive desk builds.

• Target Use Case: Deep-desk architectures and creative design workstations requiring longer desktop cable tracks to hide the main console chassis out of view.

Deployment and Installation

Physical installation must be executed following precise hardware sequencing to ensure proper host arbitration and peripheral synchronization:

Console Positioning & Power Management

• Thermal Footprint: Position the flat-profile chassis on a sturdy desk surface. Maintain a minimum of two inches of clearance around the lateral vents to allow proper passive cooling from the internal thermal core.

• Primary Power Line: Attach the factory-supplied 180W power brick directly to a dedicated wall socket. Do not use unrated, daisy-chained multi-plugs, as KVM switching requires a clean, unfiltered current floor to manage rapid dual-host handshake changes.

Host and Display Termination

• Dual-Host Wiring: Using only the included high-bandwidth Anker USB-C lines, run one cable from “PC 1” to the primary laptop and the second from “PC 2” to the secondary machine. Note: Both host devices must natively support USB-C Power Delivery and DisplayPort Alt Mode.

• Display Network Array: Connect your first 4K monitor to the rear HDMI slot and your second 4K monitor to the DisplayPort interface. To maximize line stability and prevent screen blinking, use direct-wire cables; do not use passive converters like DP-to-HDMI or DP-to-Thunderbolt adapters.

Configuration Management

Maximizing workspace productivity involves properly routing peripherals and matching system software preferences:

Peripherals and Input Mapping

• Input Device Optimization: Plug your master keyboard and mouse receiver into the front-facing USB 2.0 (480 Mbps) port. This isolated legacy port eliminates the 2.4GHz wireless signal interference often caused by active USB 3.0 blue-port data lines.

• High-Speed Storage Routing: External solid-state drives, flash storage, or high-definition webcams should be assigned to the twin 5 Gbps USB-A or USB-C ports on the front panel to utilize maximum file transfer rates.

Arbitration Switch Operation

• Magnetic Desktop Remote: Place the external wired control puck within easy arm’s reach. Pressing the button once triggers a hardware hot-swap, switching the shared monitors, keyboard, mouse, audio feed, and storage access between the two computers.

• Visual Status Indicators: The built-in LED matrix updates immediately: a steady blue light confirms host “PC 1” is driving the display console, while a yellow indicator confirms host “PC 2” has command of the workspace.

Procurement and Service Level Availability

• Exclusive Sourcing Channel: The entire Anker 554 KVM Docking Station framework, system-matching configuration support, and official 18-month hardware replacement warranties are handled and serviced exclusively through SKYRS Pakistan. Institutional buyers, IT infrastructure leads, and commercial procurement managers can secure verified hardware batches through the dedicated SKYRS business-to-business enterprise distribution desk.
