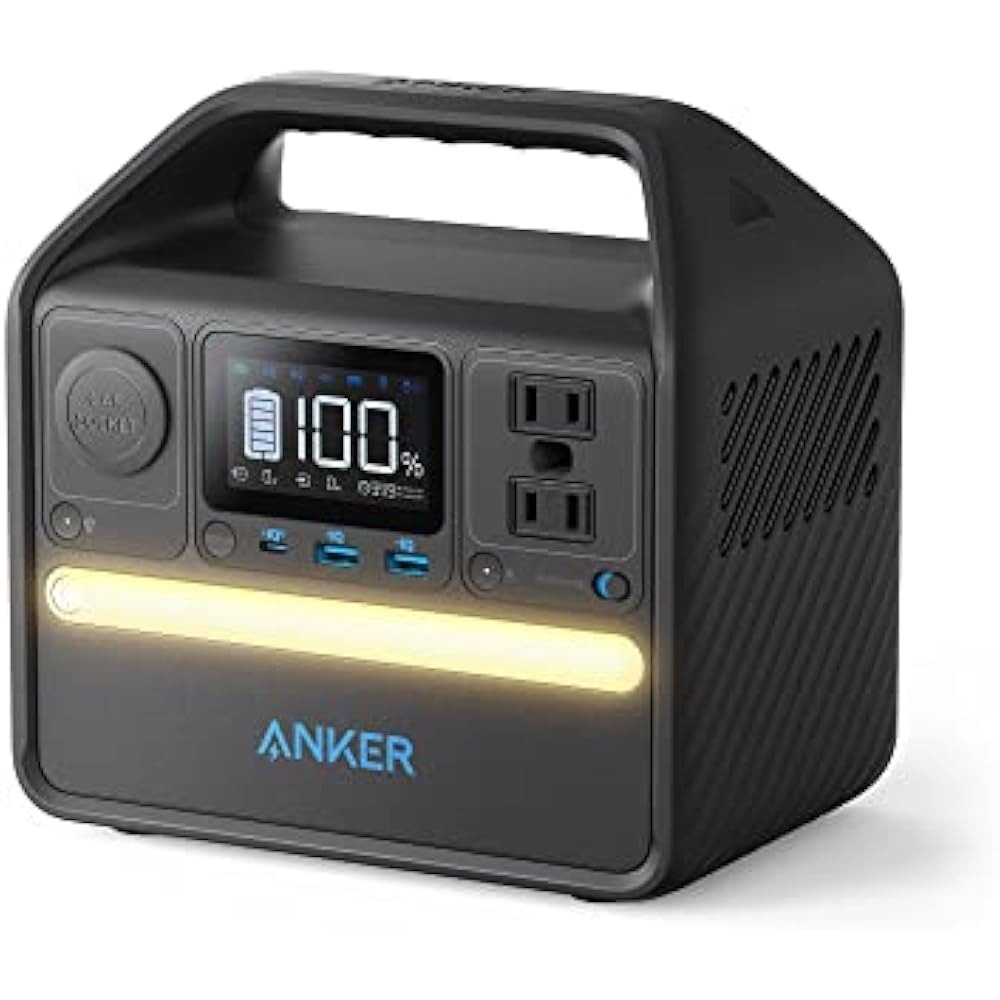

The Anker 521 Portable Power Station (InfiniPower Series 5) is a compact, ultra-durable energy storage solution designed for reliable backup power, field operations, and outdoor activities in Pakistan. Built with premium Lithium Iron Phosphate (LiFePO4) chemistry, this power station delivers exceptional thermal stability and localized electrical security.
Product Variants and Regional Specifications
To cater to diverse consumer and corporate requirements, the Anker 521 is deployed in regional variants engineered with specific socket architecture to match localized hardware interfaces. Both variations maintain identical internal cell chemistry and continuous power thresholds.
Variant Comparison Table
| Technical Parameter | Anker 521 PowerHouse (UK / Universal Socket Variant) | Anker 521 PowerHouse (EU Dual-Pin Variant) |
| Internal Cell Capacity | 256Wh (80,000mAh) | 256Wh (80,000mAh) |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) | LiFePO4 (Lithium Iron Phosphate) |
| Operational Lifecycles | 3,000+ Full Cycles to 80%+ capacity | 3,000+ Full Cycles to 80%+ capacity |
| Continuous AC Output | 200W Continuous | 200W Continuous |
| Peak Surge Capacity | 450W | 450W |
| AC Socket Configuration | 1x Universal / Type G Socket (240V, 50Hz) | 2x Type C / F Schuko Sockets (230V, 50Hz) |
| USB-C Interface | 1x 60W Power Delivery (Bi-directional Input/Output) | 1x 60W Power Delivery (Bi-directional Input/Output) |
| USB-A Interface | 2x USB-A Ports (5V, 3.6A Max Shared Output) | 2x USB-A Ports (5V, 3.6A Max Shared Output) |
| DC Car Port Output | 12V / 10A (120W Max Output) | 12V / 10A (120W Max Output) |
| DC Barrel Input | 11-28V via DC 7909 Port (65W Max Input) | 11-28V via DC 7909 Port (65W Max Input) |
| Dual-Charging Mode | Up to 125W combined (65W DC Adapter + 60W USB-C) | Up to 125W combined (65W DC Adapter + 60W USB-C) |
| Inverter Type | Pure Sine Wave Inverter | Pure Sine Wave Inverter |
| Net Product Weight | 3.7 kg (8.16 lbs) | 3.7 kg (8.16 lbs) |
| Physical Dimensions | 21.6 x 21.1 x 14.4 cm | 21.6 x 21.1 x 14.4 cm |
Deployment and Installation Guidelines
Environmental Positioning
Temperature Thresholds: Recharging is rated at 0°C to 40°C; discharge operations function reliably from -20°C to 40°C. In high-temperature regions across Pakistan, place the unibody structural housing away from direct sunlight in an area with adequate airflow.
Placement: Keep a minimum clearing of 5 cm around the side air vents. The smart temperature monitoring system tracks internal thermals 100 times per second and requires unobstructed airflow to engage whisper-quiet cooling algorithms during load spikes.
Solar Array Integration
Connection Interface: Connect via the integrated DC 7909 input barrel port.
Photovoltaic Input: The integrated MPPT (Maximum Power Point Tracking) charge controller accepts an input voltage range of 11V to 28V. It is optimized to work with any 100W or 65W portable solar panel that matches these electrical thresholds.
Configuration and Operating Procedures
Initial Commissioning
Unbox the device and verify that the front LED smart display screen is intact.
Connect the provided 65W AC Wall Adapter to the rear DC input port to wake the internal Battery Management System (BMS) from factory shipping sleep mode.
For accelerated initial configuration, plug a 60W USB-C Power Delivery wall charger into the USB-C slot alongside the DC wall adapter to trigger dual-charging up to 125W. Allow the unit to reach 100% state-of-charge before its first field deployment.
Output Control Management
Power Saving Mode (Toggle Switch): Slide the front switch to On for automated power cutoff once connected electronics are fully charged, preventing passive battery drain. Slide the switch to Off to unlock continuous output for low-wattage devices like CPAP machines or security field hardware.
Interface Initialization: Press the tactile circular control buttons located above the AC and DC ports to manually engage power routing to the required hardware lines.
Exclusive Availability Statement
Notice on Regional Availability: The official procurement, structural field deployment, system configuration provisioning, and authorized multi-year domestic warranty support for all variants of the Anker 521 Portable Power Station are managed exclusively through SKYRS in Pakistan. Direct fulfillment, localized verification, and product support cycles are restricted strictly to official SKYRS distribution networks.
