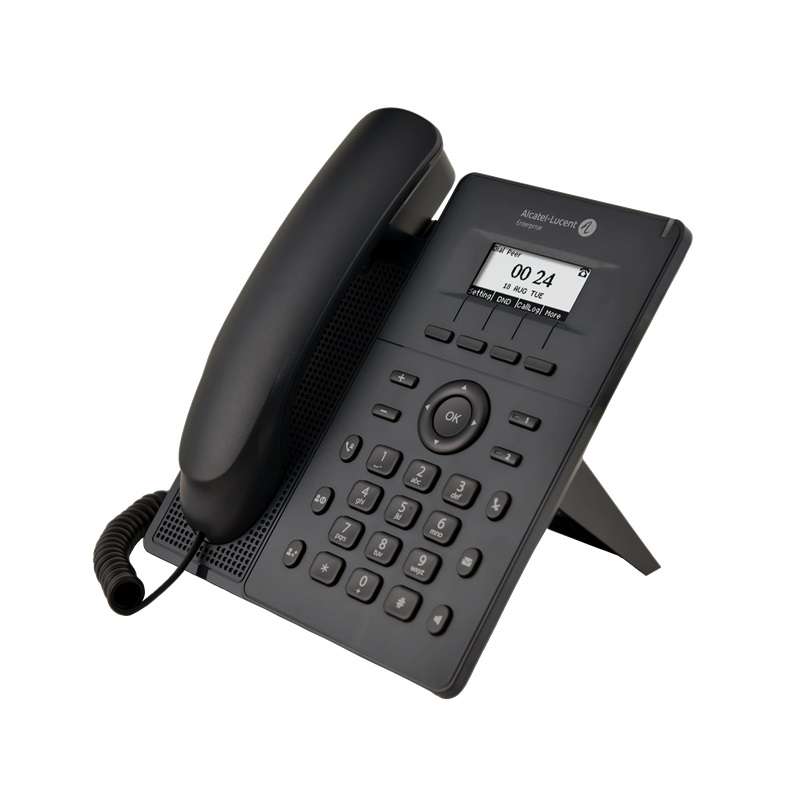

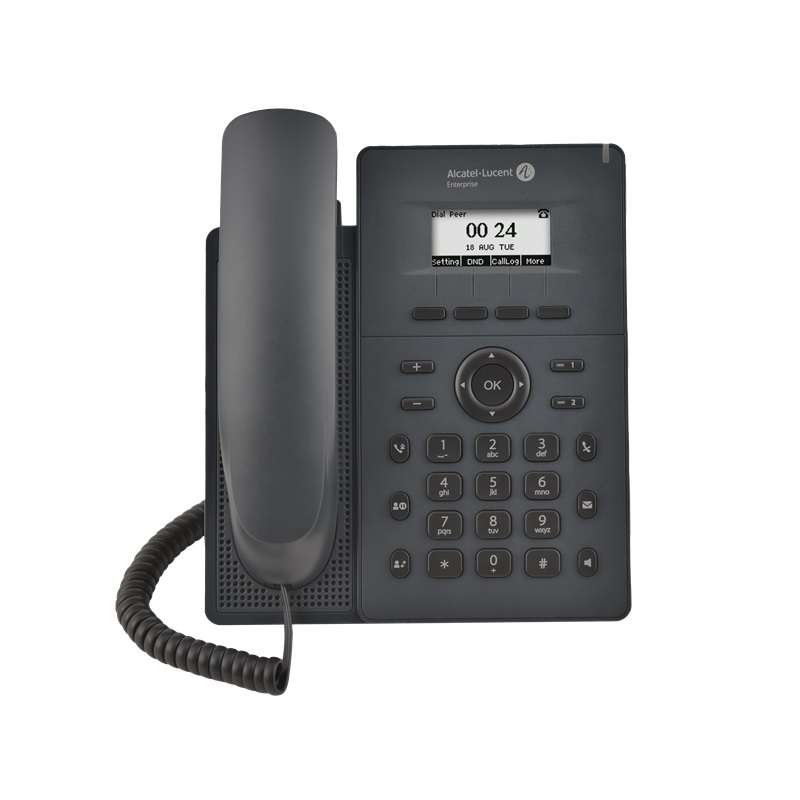

Alcatel Lucent H2P Phone – Enterprise Halo Deskphone (3MK27005AA) – Offering entry-level business phones. the Halo Series features 2 contextual line keys, B/W graphical display and fixed keys for common features. It is tailored to the requirements of knowledge workers with relatively moderate use of VoIP calls, as well as call centers and public utilities.
HD Audio Quality
ALE HD audio technology enables a rich and clear voice communication.
Exceptional 360° Audio Tuning
Handsfree audio performance remains the same regardless of user position relative to the phone.
Enterprise-grade Features
Through enterprise-grade endpoints, the Myriad Series delivers rich telephony features to facilitate business efficiency and boost teamwork.
Broad Compatibility
The standard SIP protocol provides seamless integration with major open SIP servers such as Asterisk, BroadSoft, Metaswitch, and Nfon.
HD audio quality
Wideband audio quality in both handset and hands-free mode; excellent double talk performance in hands-free mode
User-friendly interface and 2.3» balcklit screen
Easily connect with colleagues or customers
Dedicated Headset port
Connect a headset for additional communications comfort
Compact phone with adjustable foot stand
Perfect for small desks, hotel rooms and hospital bedsides
Rich telephony features with standard SIP protocol
Benefit from business features such as call management and conference, provided by your preferred cloud PBX provider
Effortless Deployment
Benefit from ALE Easy Deployment Server (EDS), and Easy Provisioning Server(EPS); very easy to configure and deploy
Physical Characteristics
• Height: 205mm (8.1 inches)
• Width: 181mm (7.1 inches)
• Depth: 47mm (1.9 inches)
• Weight: 700g (1.54 lbs) incl. handset and foot stand
• Color: Gray
• Adjustable foot stand: 45° and 50°
• Wall mountable
Display
• Visible area: 2.3 inches graphical black/white 128×64 LCD with backlight
• Viewing area (WxH): 53.2×25.8mm (2.1×1.0 inches)
Keys
• 2 Line keys (Line 1/2) with LED
• 4 menu keys
• Volume control keys (+ and -)
• Navigator: 4 way navigation + OK
• Hands-free, mute and message keys
• Call hold, call transfer and redial key
• Dial pad
Telephony Features
• 2 SIP accounts
• Call forward, call waiting, call transfer, call hold/resume, redial
• Mute/unmute, voicemail, DND, auto answer
• Local 3-party conference
• Call log, local contacts (1000)
Audio Characteristics
• G.722, OPUS, iLBC
• G711 (A-law and Mu-law), G.729AB
• VAD (Voice Activity Detection), Comfort Noise Generation (CNG)
• Acoustic echo cancellation
• DTMF: In-Band, RFC2833, SIP INFO
• Hearing Aid Compatible (HAC)
Power
• H2P: Power over Ethernet (IEEE 802.3af), Class 1
• External Power supply: 5V/0.6A (Optional accessory)
Connectivity
• RJ-45 LAN: 10/100M Ethernet
• RJ-45 PC through 10/100M Ethernet switch
• RJ-9 connector for corded handset
• RJ-9 connector for headset
Network and Protocols
• SIP v2 (RFC3261)
• Static IP and DHCP
• IPv4/IPv6
• IEEE 802.1x/LLDP-MED/QoS
• TR069
Configuration
• Web-based management
• ALE Easy Provisioning Server (EPS)
• ALE Easy Deployment Server (EDS)
Security
• H Series support OpenVPN
• Authentication: Basic or digest, 802.1x
• Denial of Service (DoS) attack protection: Flooding
• ARP Spoofing protection
• Transport: TLS 1.2/1.0 and SRTP
• Shipped with (X509v3) certificate installed
¬ Certificates for 802.1x EAP-TLS
(either Alcatel-Lucent or customer certificates)
• Supporting SHA2 ALE Certificate,
SCEP
Languages
• Multi-language support (menu): Arabic, Chinese (simplified), Chinese (traditional), Dutch, English, French, German, Hebrew, Hungarian, Italian, Korean, Portuguese (Brazil and Portugal), Russian, Spanish, Swedish and Turkish
Safety
• IEC 62368-1:2014, ANSI/UL 62368- 1-2014, CAN/CSA-C22.2 NO. 62368- 1-14
EMC
• EN 55032, CISPR 32
• EN 55024, CISPR 24
• EN 61000-3-2, EN 61000-3-3
• FCC 47 CFR Part 15 B Subpart B
• ICES-003 Issue 6
• Telecom
• TIA/EIA 810-B, TIA 920.130-A-1, AS/CA S004
Eco Design
• ErP 2009/125/EC, WEEE 2012/19/EU
• ROHS 2011/65/EU, CHINA ROHS 2: GBT 26572-2011
• REACH: European regulation: N° 1907/2006
• Proposition 65
• Packaging: EU Directive 94/62/EC
Hearing Aid Compatibility
• FCC 47 CFR Part 68, Industry Canada CS-03, Australia AS/ACIF S040
Environmental Conditions
• Operating temperature: -5°C to +45°C
• Relative humidity: 5% to 95%
• Storage/transportation temperature: -25°C/+70°C
Accessories
• 3MK08006EU external power adapter (EU)
• 3MK08006UK external power adapter (UK)
• 3MK08006US external power adapter (US)
• 3MK08006AU external power adapter (AU)
• 3MK08006IN external power adapter (IN)
• 3MK08004AA wall mounting kit
Packaging
• H2/H2P DeskPhone
• Wired wideband handset
• Foot stand
• 3m Ethernet cable (cat5e)
• Safety sheet
• Quick user guide
